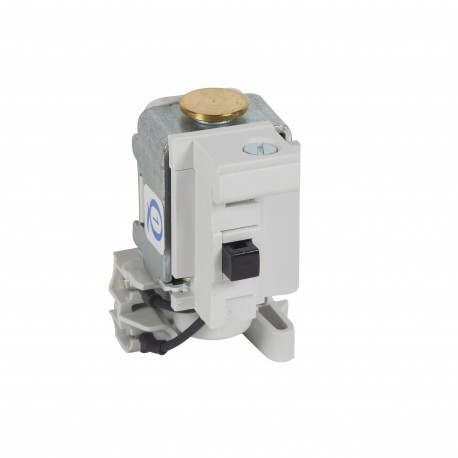

LEGRAND 422241 422241 LEGRAND DPX3 630 B. SHOT E. T. 110V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422241 LEGRAND DPX3 630 B. SHOT E. T. 110V

422241

422241

LEGRAND

1 Pcs.

DPX3 630 B. SHOT E. T. 110V Shunt releases for DRX/DPX³ - 110 V~ and = Current emission coil - coil 110V~/= - DPX³/DPX³ -I 630 and 1600

Automation > Switch spool for power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Shunt trip releases are specialized control accessories designed to interface with electrical protection devices, allowing automated or manual remote interruption of circuit breaker contacts. Electricians deploy this Legrand 422241 component to enhance safety interlocks and emergency shutdown capabilities across complex facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 100 V
  • Built as switching-on coil (EF005914): No
  • Voltage type for actuating (EF008242): AC/DC
  • Rated control supply voltage AC 50 Hz (EF003978): 100 V
  • Rated control supply voltage AC 60 Hz (EF003979): 100 V
  • Built as switch-off coil (EF006263): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.31
  • Weight (g)83.00
Product characteristics
Shunt releases
  • Allow remote tripping of a DPX³ or DPX³-I 630 and DPX³ 1600
  • Shunt inrush power 300 VA
  • Coil voltage 110 V~
General characteristics
DPX³ 630 and 1600 - common auxiliaries
