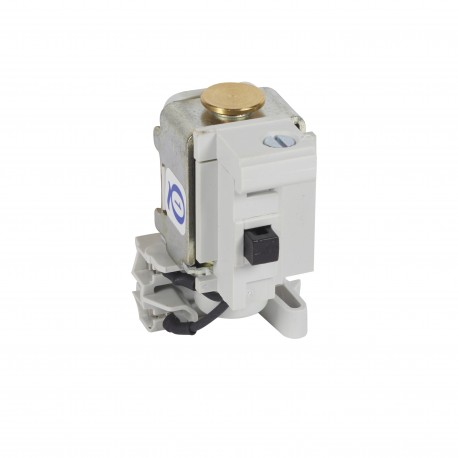

422240 LEGRAND DPX3 630 B. SHOT E. T. 48V

422240

422240

LEGRAND

1 Pcs.

DPX3 630 B. SHOT E. T. 48V Shunt releases for DRX/DPX³ - 48 V~ and = Current emission coil - coil 48 V~/= - DPX³/DPX³ -I 630 and 1600

Automation > Switch spool for power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured for industrial switchgear protection, the Legrand shunt trip coil, designated as 422240 LEGRAND DPX3 630 B. SHOT E. T. 48V, enables remote interruption of molded case circuit breakers. These internal auxiliary modules are routinely integrated into electrical control panels to facilitate emergency stop functionality from remote locations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 48 V
  • Built as switching-on coil (EF005914): No
  • Voltage type for actuating (EF008242): AC/DC
  • Rated control supply voltage AC 50 Hz (EF003978): 48 V
  • Rated control supply voltage AC 60 Hz (EF003979): 48 V
  • Built as switch-off coil (EF006263): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.31
  • Weight (g)82.00
Product characteristics
Shunt releases
  • Allow remote tripping of a DPX³ or DPX³-I 630 and DPX³ 1600
  • Shunt inrush power 300 VA
  • Coil voltage 48 V~
General characteristics
DPX³ 630 and 1600 - common auxiliaries

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
