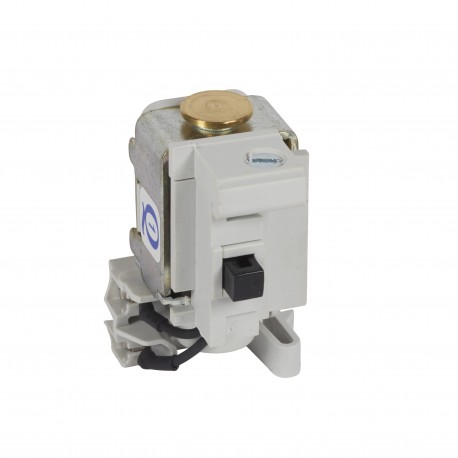

LEGRAND 422239 422239 LEGRAND DPX3 630 B. SHOT E. T. 24V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422239 LEGRAND DPX3 630 B. SHOT E. T. 24V

422239

422239

LEGRAND

1 Pcs.

DPX3 630 B. SHOT E. T. 24V Shunt releases for DRX/DPX³ - 24 V~ and = Current emission coil - coil 24V~/= - DPX³/DPX³ -I 630 and 1600

Automation > Switch spool for power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 422239 LEGRAND DPX3 630 B. SHOT E. T. 24V functions as an internal electrical switching accessory designed to trigger circuit breaker operations efficiently within automated panels. Such auxiliary coils play a critical role in remote safety disconnects across commercial power distribution frameworks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 24 V
  • Built as switching-on coil (EF005914): No
  • Voltage type for actuating (EF008242): AC/DC
  • Rated control supply voltage AC 50 Hz (EF003978): 24 V
  • Rated control supply voltage AC 60 Hz (EF003979): 24 V
  • Built as switch-off coil (EF006263): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.31
  • Weight (g)82.00
Product characteristics
Shunt releases
  • Allow remote tripping of a DPX³ or DPX³-I 630 and DPX³ 1600
  • Shunt inrush power 300 VA
  • Coil voltage 24 V~
General characteristics
DPX³ 630 and 1600 - common auxiliaries
