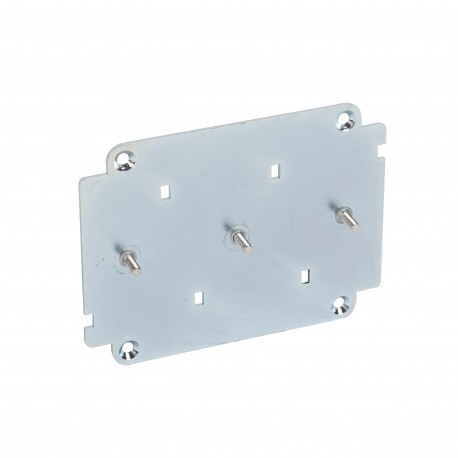

LEGRAND 422236 422236 LEGRAND DPX3630 PLATE CONT. SIGNAL. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422236 LEGRAND DPX3630 PLATE CONT. SIGNAL.

422236

422236

LEGRAND

1 Pcs.

DPX3630 PLATE CONT. SIGNAL. Mounting plate for the contact of signaling ref. 026574 Fixing plate for the signaling contact ref. 026574

Automation > Chassis part power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand dpx3630 plate cont. signal. is an internal accessory plate utilized in switchgear assemblies to mount auxiliary signaling devices and control wiring. Such plates help organize secondary control circuits and status monitoring components within industrial breaker compartments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): No
  • Type of electrical connection of main circuit (EF006819): Bolt connection

More info

▲

Product features

Execution seccionable - A DPX3 version seccionable is a DPX3 removable, equipped with a mechanism for "Debro-lift" that allows for disconnection of the appliance by keeping it always in its socket - mounting Plate for the contact of signaling ref. 026574 in version seccionable

General characteristics

DPX3 630 - accessories and controls
