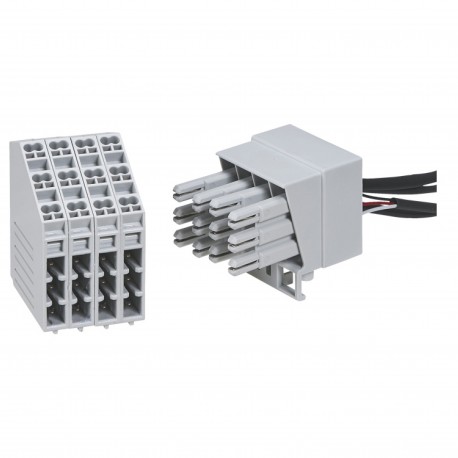

LEGRAND 422230 422230 LEGRAND DPX3 630/1600 CONTACTS SEC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422230 LEGRAND DPX3 630/1600 CONTACTS SEC

422230

422230

LEGRAND

1 Pcs.

DPX3 630/1600 - CONTACTS SEC Automatic auxiliairy contacts for DPX³ Auxiliary contacts (6) for DPX³ 630/1600 disconnector version

Automation > Accessories/spare parts for low-voltage switch technology
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand secondary contact 422230 functions as a precision switching piece within DPX3 630 and 1600 circuit breaker assemblies to transmit auxiliary status signals to control systems. Plant technicians integrate these internal contacts to enable remote monitoring of breaker open and closed states.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Switching piece

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.501
  • Weight (g)272.00
Product characteristics
Draw-out version
  • A DPX³ draw-out version is a DPX³ fitted with draw-out base and a "Debro-lift" mechanism which can be used to withdraw the DPX³ while keeping it on its base
Auxiliary contacts
  • Automatic auxiliairy contacts for DPX³ draw-out version (up to 2 contacts by DPX³)
General characteristics
DPX³ 1600 - equipment and accessories
