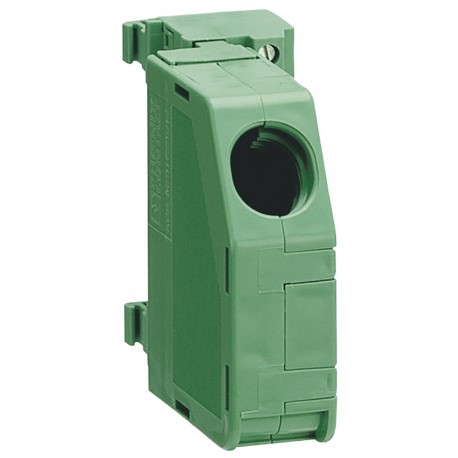

LEGRAND 422229 422229 LEGRAND DPX3 630 CONNECTOR 24PIN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422229 LEGRAND DPX3 630 CONNECTOR 24PIN

422229

422229

LEGRAND

1 Pcs.

DPX3 630 CONNECTOR 24PIN Set of connectors (24-pin) Connector set (24 pin)

Automation > Accessories/spare parts for low-voltage switch technology
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 422229 LEGRAND DPX3 630 CONNECTOR 24PIN by Legrand is a multi-pin connector accessory designed to facilitate internal auxiliary wiring and signal transmission within molded case circuit breaker assemblies. Plug-in connectors allow rapid connection of control circuits, auxiliary contacts, and trip signaling devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Switching piece

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.917
  • Weight (g)188.00
Product characteristics
Plug-in version
  • A plug-in is a DPX³ fitted with special terminals and mounted on a plug-in base
Accessories
  • 4P
  • Set of connectors (24-pin)
General characteristics
DPX³ 630 - equipment and accessories
