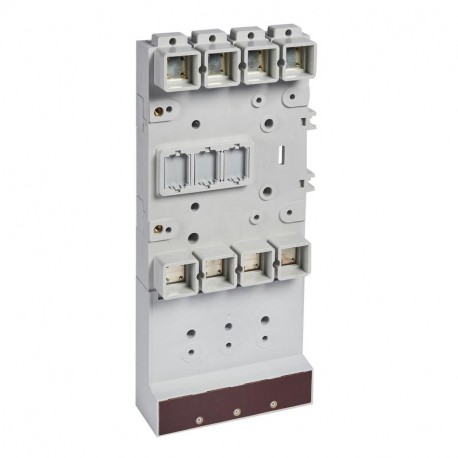

LEGRAND 422227 422227 LEGRAND DPX3 630+DIF SOCKET C. P. 4P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422227 LEGRAND DPX3 630+DIF SOCKET C. P. 4P

422227

422227

LEGRAND

1 Pcs.

DPX3 630+DIF SOCKET C. P. 4P Flat rear terminal mounting base - for DPX³ only - 4P -with earth leakage modules Rear-Facing Socket for DPX³ 630 with Differential Block - 4P

Automation > Chassis part power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 422227 LEGRAND DPX3 630+DIF SOCKET C. P. 4P serves as a dedicated mounting socket and connection base for molded case circuit breakers equipped with differential protection modules. This socket base establishes secure electrical and mechanical interfaces for multi-pole power distribution setups in commercial and industrial electrical panels.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): Yes
  • Version as built-in device (EF006954): Yes
  • Type of electrical connection of main circuit (EF006819): Bolt connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)33.751
  • Weight (g)6 474.00
Product characteristics
Plug-in version
  • A plug-in is a DPX³ fitted with special terminals and mounted on a plug-in base
Bases for DPX³ with earth leakage module
  • 4P
  • Flat rear terminal mounting base
General characteristics
DPX³ 630 - equipment and accessories
