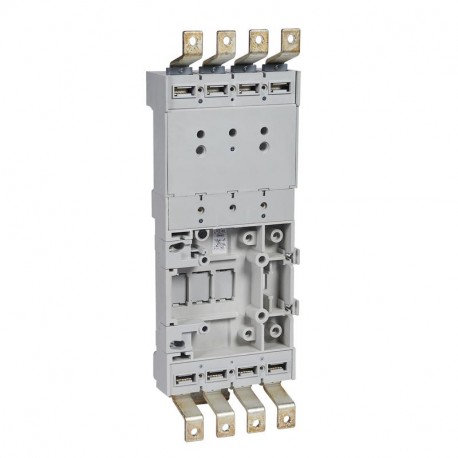

LEGRAND 422226 422226 LEGRAND DPX3 630+DIF SOCKET C. A. 4P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422226 LEGRAND DPX3 630+DIF SOCKET C. A. 4P

422226

422226

LEGRAND

1 Pcs.

DPX3 630+DIF SOCKET C. A. 4P Front terminal mounting base - for DPX³ only - 4P - with earth leakage modules Socket with previous connection for DPX³ 630 with differential block - 4P

Automation > Chassis part power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 422226 LEGRAND DPX3 630+DIF SOCKET C. A. 4P is a specialized mounting accessory utilized to securely anchor and interface modular circuit breakers within industrial distribution panels. Sockets and base adapters facilitate safe mechanical installation while maintaining the required electrical pathways for power distribution systems.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): Yes
  • Version as built-in device (EF006954): Yes
  • Type of electrical connection of main circuit (EF006819): Bolt connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)33.751
  • Weight (g)6 782.00
Product characteristics
Plug-in version
  • A plug-in is a DPX³ fitted with special terminals and mounted on a plug-in base
Bases for DPX³ with earth leakage module
  • 4P
  • Front terminal mounting base
General characteristics
DPX³ 630 - equipment and accessories
