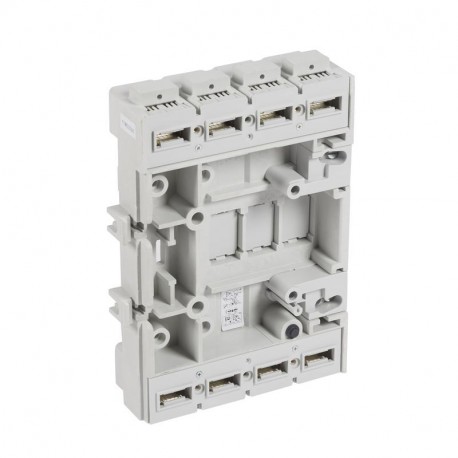

LEGRAND 422225 422225 LEGRAND DPX3 630 SOCKET C. P. 4P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422225 LEGRAND DPX3 630 SOCKET C. P. 4P

422225

422225

LEGRAND

1 Pcs.

DPX3 630 SOCKET C. P. 4P Flat rear terminal mounting base - for DPX³ only - 4P Rear-connected socket for DPX³ 630 only - 4P

Automation > Chassis part power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 422225 LEGRAND DPX3 630 SOCKET C. P. 4P provides a reliable plug-in base foundation designed for mounting high-capacity molded case circuit breakers in industrial enclosures. This socket streamlines panel assembly by allowing quick installation and removal of protective switching devices without disturbing main busbar runs.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): Yes
  • Version as built-in device (EF006954): Yes
  • Type of electrical connection of main circuit (EF006819): Bolt connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)7.696
  • Weight (g)4 595.00
Product characteristics
Plug-in version
  • A plug-in is a DPX³ fitted with special terminals and mounted on a plug-in base
Bases for DPX³ only
  • Accept DPX³/DPX³-I fitted with special terminals
  • Flat rear terminal mounting base
General characteristics
DPX³ 630 - equipment and accessories
