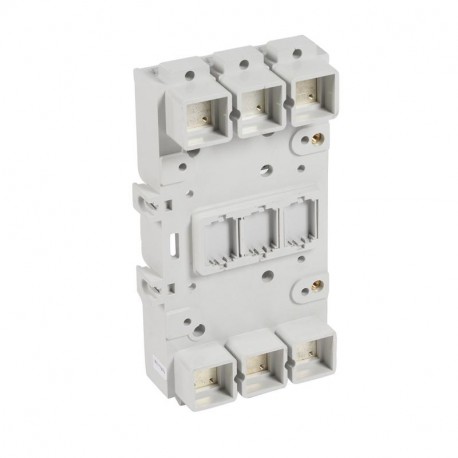

LEGRAND 422224 422224 LEGRAND DPX3 630 SOCKET C. P. 3P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422224 LEGRAND DPX3 630 SOCKET C. P. 3P

422224

422224

LEGRAND

1 Pcs.

DPX3 630 SOCKET C. P. 3P Flat rear terminal mounting base - for DPX³ only - 3P Rear-connected socket for DPX³ 630 only - 3P

Automation > Chassis part power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 422224 LEGRAND DPX3 630 SOCKET C. P. 3P provides a secure plug-in socket base engineered to mount molded case circuit breakers within electrical distribution panels. Plug-in sockets facilitate fast equipment replacement and testing routines in commercial and industrial power systems. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): Yes
  • Version as built-in device (EF006954): Yes
  • Type of electrical connection of main circuit (EF006819): Bolt connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)7.696
  • Weight (g)2 870.00
Product characteristics
Plug-in version
  • A plug-in is a DPX³ fitted with special terminals and mounted on a plug-in base
Bases for DPX³ only
  • Accept DPX³/DPX³-I fitted with special terminals
  • Flat rear terminal mounting base
General characteristics
DPX³ 630 - equipment and accessories
