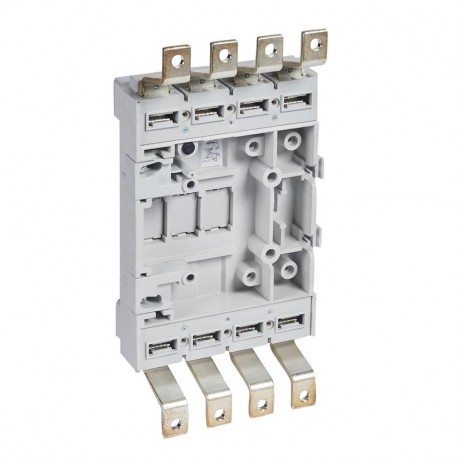

LEGRAND 422223 422223 LEGRAND DPX3 630 SOCKET C. A. 4P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422223 LEGRAND DPX3 630 SOCKET C. A. 4P

422223

422223

LEGRAND

1 Pcs.

DPX3 630 SOCKET C. A. 4P Front terminal mounting base - for DPX³ only - 4P Socket with previous connection for DPX³ 630 only - 4P

Automation > Chassis part power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 422223 DPX3 630 socket is a plug-in base designed to receive molded case circuit breakers, allowing fast installation and replacement within electrical switchgear enclosures. Sockets of this type streamline maintenance by letting technicians swap switching units without disconnecting heavy power cables.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): Yes
  • Version as built-in device (EF006954): Yes
  • Type of electrical connection of main circuit (EF006819): Bolt connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)33.314
  • Weight (g)6 152.00
Product characteristics
Plug-in version
  • A plug-in is a DPX³ fitted with special terminals and mounted on a plug-in base
Bases for DPX³ only
  • Accept DPX³/DPX³-I fitted with special terminals
  • Front terminal mounting base
General characteristics
DPX³ 630 - equipment and accessories
