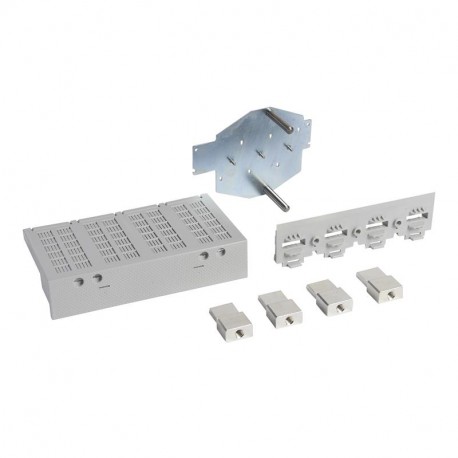

LEGRAND 422221 422221 LEGRAND DPX3 630 ACC VERSION EXT/SEC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422221 LEGRAND DPX3 630 ACC VERSION EXT/SEC

422221

422221

LEGRAND

1 Pcs.

DPX3 630 ACC VERSION EXT/SEC set of incoming and outgoing terminals DPX³ for plug-in/draw-out base - 4P Sockets for DPX³ 630 removable or sectionable version - 4P

Automation > Chassis part power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 422221 LEGRAND DPX3 630 ACC VERSION EXT/SEC serves as an accessory frame component utilized within industrial switchgear assemblies to facilitate secure mounting and internal structural management for circuit breaker systems. This hardware supports organized cable routing and reliable mechanical stability across power distribution panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): Yes
  • Type of electrical connection of main circuit (EF006819): Bolt connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.668
  • Weight (g)1 485.00
Product characteristics
Plug-in version
  • A plug-in is a DPX³ fitted with special terminals and mounted on a plug-in base
Special terminals for plug-in/draw-out base
  • 4P
  • Set of incoming and outgoing terminals (6 terminals for 3P DPX³ or 8 terminals for 4P DPX³)
General characteristics
DPX³ 630 - equipment and accessories
