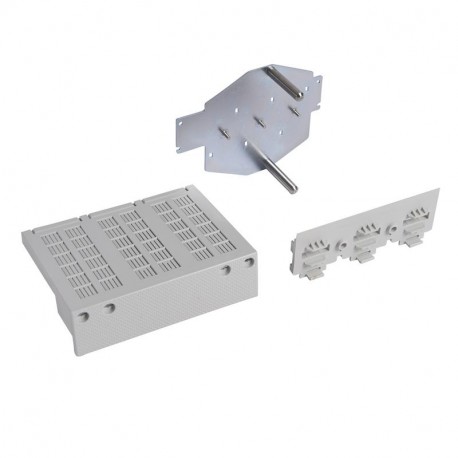

LEGRAND 422220 422220 LEGRAND DPX3 630 ACC VERSION EXT/SEC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422220 LEGRAND DPX3 630 ACC VERSION EXT/SEC

422220

422220

LEGRAND

1 Pcs.

DPX3 630 ACC VERSION EXT/SEC set of incoming and outgoing terminals DPX³ for plug-in/draw-out base - 3P Sockets for DPX³ 630 removable or sectionable - 3P

Automation > Chassis part power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as a component version accessory, the 422220 LEGRAND DPX3 630 ACC VERSION EXT/SEC from Legrand is typically integrated into heavy-duty power distribution boards to support secure circuit breaker installation and terminal management. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): Yes
  • Type of electrical connection of main circuit (EF006819): Bolt connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.668
  • Weight (g)1 215.00
Product characteristics
Plug-in version
  • A plug-in is a DPX³ fitted with special terminals and mounted on a plug-in base
Special terminals for plug-in/draw-out base
  • 3P
  • Set of incoming and outgoing terminals (6 terminals for 3P DPX³ or 8 terminals for 4P DPX³)
General characteristics
DPX³ 630 - equipment and accessories
