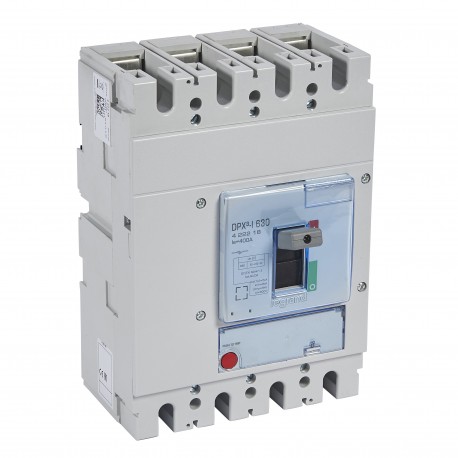

422218 LEGRAND DPX3-I 630 INTER. 4P 400A
422218
422218
LEGRAND
1 Pcs.
Connectors > Switch disconnector
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 422218 DPX3-I 630 interlockable switch-disconnector provides reliable circuit isolation and emergency switching for electrical distribution networks. Panel builders incorporate these four-pole devices to disconnect power feeds securely during facility maintenance operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as safety switch (EF006985): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Version as main switch (EF006981): Yes
- Interlockable (EF006281): Yes
- Rated short-time withstand current lcw (EF007050): 5 kA
- Voltage release optional (EF007491): Yes
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 4
- Type of electrical connection of main circuit (EF006819): Screw connection
- Version as emergency stop installation (EF006959): Yes
- Motor drive integrated (EF006697): No
- Version as reversing switch (EF009408): No
- Type of control element (EF006976): Toggle
- Conditioned rated short-circuit current Iq (EF001444): 4 kA
- Rated operation power at AC-23, 400 V (EF007027): 160 kW
More info
▲| Version as main switch | Yes |
|---|---|
| Version as maintenance-/service switch | Yes |
| Version as safety switch | Yes |
| Version as emergency stop installation | Yes |
| Version as reversing switch | No |
| Max. rated operation voltage Ue AC | 690 V |
| Rated operating voltage | 220-690 V |
| Rated permanent current Iu | 400 A |
| Rated permanent current at AC-21, 400 V | 400 A |
| Rated short-time withstand current lcw | 5 kA |
| Rated operation power at AC-23, 400 V | 160 kW |
| Conditioned rated short-circuit current Iq | 4 kA |
| Number of poles | 4 |
| Number of auxiliary contacts as change-over contact | 2 |
| Motor drive optional | Yes |
|---|---|
| Motor drive integrated | No |
| Voltage release optional | Yes |
| Device construction | Built-in device fixed built-in technique |
| Suitable for floor mounting | Yes |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | No |
| Colour control element | Grey |
| Type of control element | Wing knob |
| Interlockable | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Degree of protection (IP), front side | IP30 |
