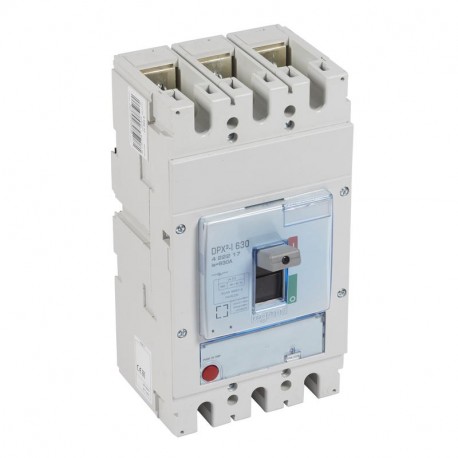

DPX3-I 630 INTER. 3P 630A DPX³-I 630 3 Pole 630A Trip-Free Switch DPX³ -I 630 Free Disconnect Switch - 3P - 630A

Connectors > Switch disconnector
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for heavy-duty power distribution, the Legrand 422217 DPX3-I 630 inter. 3P 630A functions as a robust circuit breaker and load disconnector. Technicians integrate such components into industrial switchboards to protect downstream equipment and enable secure manual disconnection of high-amperage lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 8 kA
  • Voltage release optional (EF007491): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): Yes
  • Motor drive integrated (EF006697): No
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Toggle
  • Conditioned rated short-circuit current Iq (EF001444): 7.6 kA
  • Rated operation power at AC-23, 400 V (EF007027): 252 kW

More info

▲
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Version as emergency stop installationYes
Version as reversing switchNo
Max. rated operation voltage Ue AC690 V
Rated operating voltage220-690 V
Rated permanent current Iu630 A
Rated permanent current at AC-21, 400 V630 A
Rated short-time withstand current lcw8 kA
Rated operation power at AC-23, 400 V252 kW
Conditioned rated short-circuit current Iq7.6 kA
Number of poles3
Number of auxiliary contacts as change-over contact2
Motor drive optionalYes
Motor drive integratedNo
Voltage release optionalYes
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Colour control elementGrey
Type of control elementWing knob
InterlockableYes
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP30
