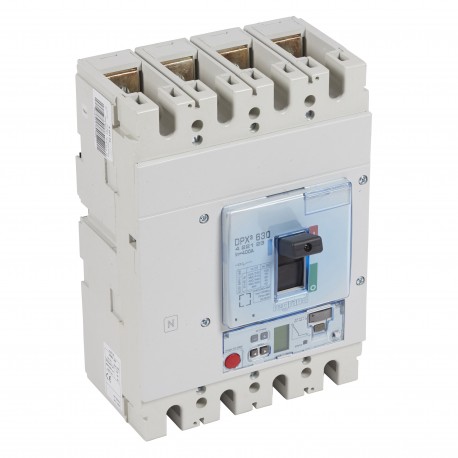

422123 LEGRAND DPX3 630 THE+MED 4P 400A 70kA
422123
422123
LEGRAND
1 Pcs.
DPX3 630 THE+MED 4P 400A 70kA
MCCB DPX³ 630 - S2 elec release + central - 4P - Icu 70 kA (400 V~) - In 400 A
MCCB DPX³ 630 electronic S2 + size - 4P - Icu 70kA (400V~) - In 400A
Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 422123 DPX3 630 THE+MED 4P 400A 70kA is a molded case circuit breaker utilized in commercial and industrial electrical panels to automatically interrupt fault currents and protect downstream wiring.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 5000 A
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): Yes
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 4
- Type of electrical connection of main circuit (EF006819): Screw connection
- Overload release current setting (EF002336): 160 A
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Toggle
- Rated permanent current Iu (EF001389): 400 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Front
- Rated voltage (EF003977): 220 V
More info
▲- Pack (number of units)1
- Volume (dm3)10.00
- Weight (g)7 094.00
Product characteristics
MCCBs electronic release S2 with energy metering central unit - fixed version- Adjustment of Ir, Isd, tr, tsd
- Instantaneous protection If = 5 kA
- Green indicator lamp
- Connector for test unit
- Logic and dynamic selectivity
- 4P version: adjustment of neutral on front panel
- 4P
- In : 400 A
General characteristics
DPX³ 630 - S2 electronic release MCCBs from 250 to 630 A- Moulded case MCCBs for switching, control isolation and protection of low voltage electrical lines
- Can be fitted with auxiliaries
- Can be used with earth leakage modules or with residual current relays
- Supplied complete with:
- fixing screws
- connection plates for bars
- insulated shields (phase barriers)
- Conform to IEC 60947-2 - Sealable adjustment
- Can be mounted on plate in XL³ cabinets and enclosures
