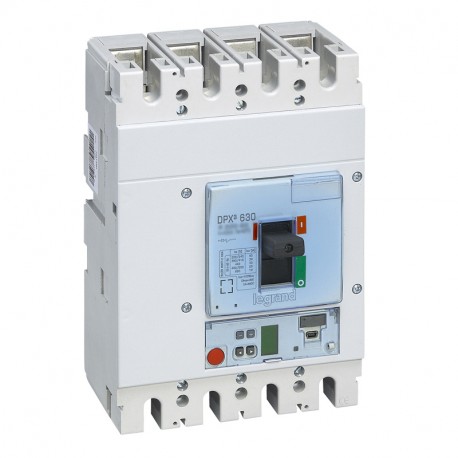

422091 LEGRAND DPX3 630 ELECT. 4P 250A 100kA
422091
422091
LEGRAND
1 Pcs.
DPX3 630 ELECT. 4P 250A 100kA
MCCB DPX³ 630 - S2 electronic release - 4P - Icu 100 kA (400 V~) - In 250 A
Automatic MCCB DPX³ 630 - electronic S2 - 4P - 100kA - 250A
Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The LEGRAND DPX3 630 ELECT. 4P 250A 100kA is a high-capacity electronic circuit breaker designed to safely manage and interrupt high current loads within electrical distribution panels, preventing equipment damage and electrical faults.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 5000 A
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): Yes
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 4
- Type of electrical connection of main circuit (EF006819): Screw connection
- Overload release current setting (EF002336): 100 A
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Toggle
- Rated permanent current Iu (EF001389): 250 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Front
- Rated voltage (EF003977): 220 V
More info
▲- Pack (number of units)1
- Volume (dm3)10.00
- Weight (g)5 905.00
Product characteristics
MCCBs electronic release S2 - fixed version- Adjustment of Ir, Isd, tr, tsd
- Instantaneous protection If = 5 kA
- Green indicator lamp
- Connector for test unit
- Logic and dynamic selectivity
- 4P version: adjustment of neutral on front panel
- 4P
- In : 250 A
General characteristics
DPX³ 630 - S2 electronic release MCCBs from 250 to 630 A- Moulded case MCCBs for switching, control isolation and protection of low voltage electrical lines
- Can be fitted with auxiliaries
- Can be used with earth leakage modules or with residual current relays
- Supplied complete with:
- fixing screws
- connection plates for bars
- insulated shields (phase barriers)
- Conform to IEC 60947-2 - Sealable adjustment
- Can be mounted on plate in XL³ cabinets and enclosures
