LEGRAND 422080 422080 LEGRAND DPX3 630 ELECT. 3P 630A 70kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

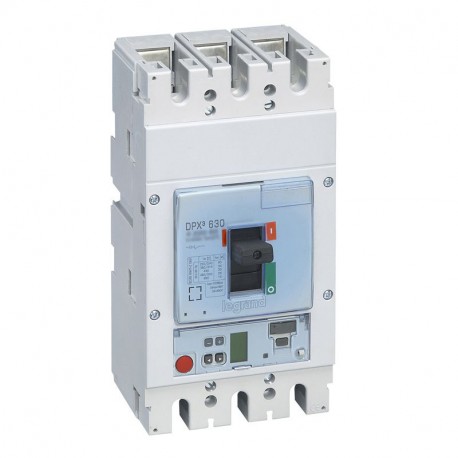

422080 LEGRAND DPX3 630 ELECT. 3P 630A 70kA

422080

422080

LEGRAND

1 Pcs.

DPX3 630 ELECT. 3P 630A 70kA MCCB DPX³ 630 - S2 electronic release - 3P - Icu 70 kA (400 V~) - In 630 A Automatic MCCB DPX³ 630 - electronic S2 - 3P - 70kA - 630A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Ensure reliable circuit protection and system isolation with the Legrand 422080 LEGRAND DPX3 630 ELECT. 3P 630A 70kA circuit breaker. Moulded case circuit breakers are standard components used to interrupt excessive current levels and protect commercial installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 5000 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Overload release current setting (EF002336): 252 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 630 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)10.00
  • Weight (g)5 932.00
Product characteristics
MCCBs electronic release S2 - fixed version
  • Adjustment of Ir, Isd, tr, tsd
  • Instantaneous protection If = 5 kA
  • Green indicator lamp
  • Connector for test unit
  • Logic and dynamic selectivity
  • 4P version: adjustment of neutral on front panel
Breaking capacity Icu 70 kA (400 V~)
  • 3P
  • In : 630 A
General characteristics
DPX³ 630 - S2 electronic release MCCBs from 250 to 630 A
  • Moulded case MCCBs for switching, control isolation and protection of low voltage electrical lines
  • Can be fitted with auxiliaries
  • Can be used with earth leakage modules or with residual current relays
  • Supplied complete with:
    • fixing screws
    • connection plates for bars
    • insulated shields (phase barriers)
  • Conform to IEC 60947-2 - Sealable adjustment
  • Can be mounted on plate in XL³ cabinets and enclosures

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
