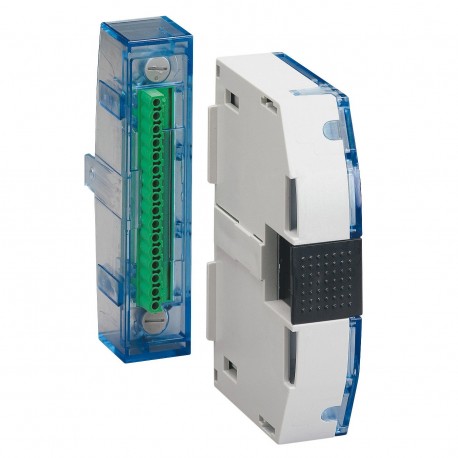

421044 LEGRAND DPX3 connector for auxiliary
421044
421044
LEGRAND
1 Pcs.
DPX3 connector for auxiliary
Block connectors for auxiliary DPX3 160/250 rear connection
Connector block for DPX³ 160/250 auxiliaries rear connection
Automation > Auxiliary device for distribution board devices
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Removable version - A DPX3 removable version is a DPX3 fixed equipped with a base Connectors for supporting - Block connectors for auxiliary contactsGeneral characteristics
DPX3 160/250 - removable version and accessories| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | Auxiliary switch |
| Number of fault-signal switches (EF007613) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Width in number of modular spacings (EF002950) | 29 |
| Suitable for max. current main contact unit (EF008730) | 12 A |
| Voltage type (EF000187) | AC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Rated switch current (EF006706) | 12 A |
| With auto test for earth leakage function (EF008727) | No |
| Rated voltage (EF000228) | 250 V |
| Device fitting (EF007826) | Miniature circuit breaker (MCB) |
| Suitable for max. number of poles main contact unit (total) (EF008729) | 4 |
