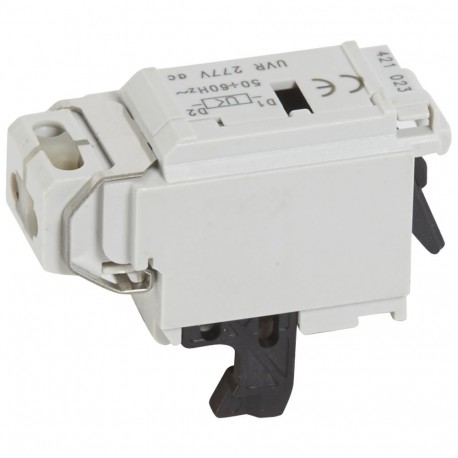

LEGRAND 421023 421023 LEGRAND DPX3 coil m.t.277 Vac View larger
Images are for illustrative purposes only. Please refer to data sheet for details

421023 LEGRAND DPX3 coil m.t.277 Vac

421023

421023

LEGRAND

1 Pcs.

DPX3 coil m.t.277 Vac Undervoltage release - for DPX³ - 277 V~ Minimum voltage coil for DPX³/DPX³ -I 160/250 - coil 277 V~

Automation > Under voltage coil
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand DPX3 coil m.t.277 Vac acts as an internal tripping accessory for molded case circuit breakers, allowing remote or automatic opening of the circuit upon signal loss. Such coils provide essential control capabilities within high-capacity electrical distribution grids.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Delayed (EF001541): No
  • Suitable for off-load switch (EF001543): Yes
  • Suitable for power circuit breaker (EF005863): Yes
  • Type of electric connection (EF003961): Screw connection
  • Voltage type for actuating (EF008242): DC
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Suitable for motor safety switch (EF005826): Yes
  • Suitable for overload relay (EF001545): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 277 V
  • Rated control supply voltage AC 60 Hz (EF003979): 277 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.127
  • Weight (g)60.00
Product characteristics
Undervoltage releases
  • Allow remote tripping of a DPX³/DPX³-I 160 and 250
  • 277 V~
General characteristics
DPX³ 160 and 250 common auxiliaries and accessories
