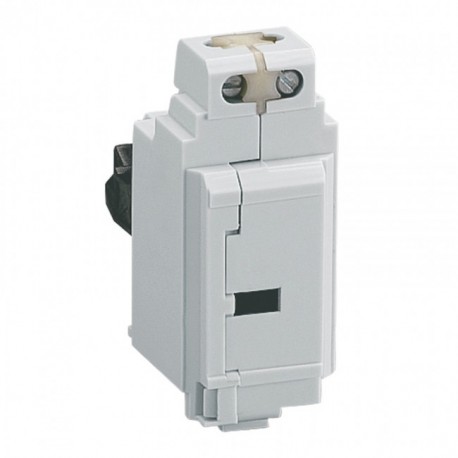

LEGRAND 421022 421022 LEGRAND DPX3 coil m.t.200-240 Vac View larger
Images are for illustrative purposes only. Please refer to data sheet for details

421022 LEGRAND DPX3 coil m.t.200-240 Vac

421022

421022

LEGRAND

1 Pcs.

DPX3 coil m.t.200-240 Vac Undervoltage release - for DPX³ - 200-240 V~/= Minimum voltage coil for DPX³/DPX³ -I 160/250 - coil 200 - 240V~

Automation > Under voltage coil
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Legrand 421022 LEGRAND DPX3 coil m.t.200-240 Vac serves as an undervoltage release module designed to trip circuit protection gear automatically when line voltage falls below safe thresholds.

Panel builders rely on these trip coils to maintain rigorous safety standards across complex power distribution and motor control architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Delayed (EF001541): No
  • Suitable for off-load switch (EF001543): Yes
  • Suitable for power circuit breaker (EF005863): Yes
  • Type of electric connection (EF003961): Screw connection
  • Voltage type for actuating (EF008242): DC
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Suitable for motor safety switch (EF005826): Yes
  • Suitable for overload relay (EF001545): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 200 V
  • Rated control supply voltage AC 60 Hz (EF003979): 200 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.127
  • Weight (g)55.00
Product characteristics
Undervoltage releases
  • Allow remote tripping of a DPX³/DPX³-I 160 and 250
  • 200-240 V~
General characteristics
DPX³ 160 and 250 common auxiliaries and accessories
