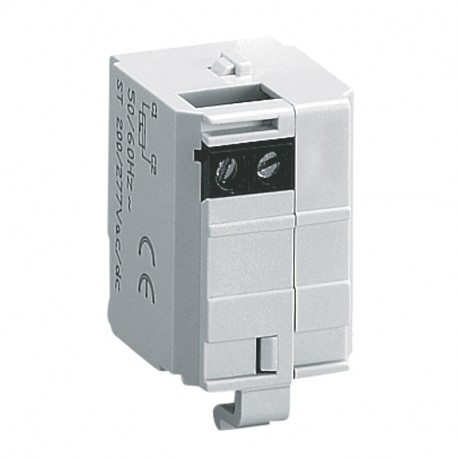

421016 LEGRAND DPX3 coil emission 200-277Vac
421016
421016
LEGRAND
1 Pcs.
Automation > Shunt release (for power circuit breaker)
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A shunt release coil initiates remote tripping of industrial circuit breakers upon receiving an AC control voltage command, allowing automated safety systems to disconnect power lines instantly. The Legrand 421016 module installs easily within modular switchgear enclosures to handle emergency interruption tasks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as change-over contact (EF008257): 0
- Suitable for off-load switch (EF001543): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Type of electric connection (EF003961): Screw connection
- Voltage type for actuating (EF008242): AC
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 0
- Suitable for overload relay (EF001545): Yes
- Suitable for motor safety switch (EF005826): Yes
- Rated control supply voltage AC 50 Hz (EF003978): 200 V
- Rated control supply voltage AC 60 Hz (EF003979): 200 V
More info
▲- Pack (number of units)1
- Volume (dm3)0.127
- Weight (g)45.00
- Allow remote tripping of a DPX³/DPX³-I 160 and 250
- 200-277 V~
