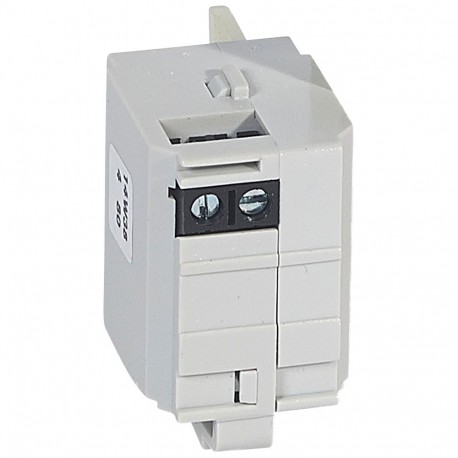

421013 LEGRAND DPX3 coil issue 24 Vac/dc
421013
421013
LEGRAND
1 Pcs.
Automation > Shunt release (for power circuit breaker)
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An undervoltage release or opening coil accessory allows circuit breakers to respond immediately to control system signals, providing reliable remote tripping functionality for industrial power panels. This Legrand 421013 component is engineered for seamless integration with compatible switchgear frameworks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage DC (EF003980): 24 V
- Number of contacts as change-over contact (EF008257): 0
- Suitable for off-load switch (EF001543): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Type of electric connection (EF003961): Screw connection
- Voltage type for actuating (EF008242): AC/DC
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 0
- Suitable for overload relay (EF001545): Yes
- Suitable for motor safety switch (EF005826): Yes
- Rated control supply voltage AC 50 Hz (EF003978): 24 V
- Rated control supply voltage AC 60 Hz (EF003979): 24 V
More info
▲- Pack (number of units)1
- Volume (dm3)0.127
- Weight (g)52.00
- Allow remote tripping of a DPX³/DPX³-I 160 and 250
- 24 V~/=
