View larger
Images are for illustrative purposes only. Please refer to data sheet for details

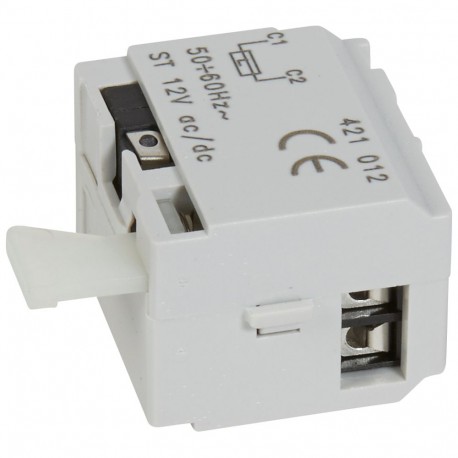

421012 LEGRAND DPX3 coil issue 12 Vac/dc
421012
421012
LEGRAND
1 Pcs.
DPX3 coil issue 12 Vac/dc
Shunt release - for DPX³ - 12 V~/=
Current emission coil for DPX³/DPX³ -I 160/250 - coil 12 V~/=
Automation > Shunt release (for power circuit breaker)
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.127
- Weight (g)52.00
Product characteristics
Shunt releases- Allow remote tripping of a DPX³/DPX³-I 160 and 250
- 12 V~/=
General characteristics
DPX³ 160 and 250 common auxiliaries and accessories| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 12 V |
| Number of contacts as change-over contact (EF008257) | 0 |
| Suitable for off-load switch (EF001543) | Yes |
| Suitable for power circuit breaker (EF005863) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type for actuating (EF008242) | AC/DC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Suitable for overload relay (EF001545) | Yes |
| Suitable for motor safety switch (EF005826) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 12 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 12 V |
