View larger
Images are for illustrative purposes only. Please refer to data sheet for details

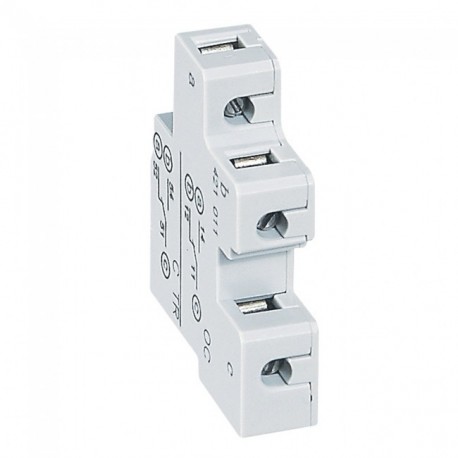

421011 LEGRAND DPX3 cont. aux. or s. def.
421011
421011
LEGRAND
1 Pcs.
DPX3 cont. aux. or s. def.
Auxiliary contact or fault signalling contact - for DPX³
Auxiliary contact or DPX³ fault signal
Automation > Auxiliary device for distribution board devices
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.127
- Weight (g)28.00
Product characteristics
Auxiliary contact or fault signal- Auxiliary contact or fault signalling contact
General characteristics
DPX³ 630 and 1600 - common auxiliaries| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | Auxiliary switch |
| Number of fault-signal switches (EF007613) | 0 |
| Number of contacts as change-over contact (EF008257) | 1 |
| Width in number of modular spacings (EF002950) | 33.8 |
| Suitable for max. current main contact unit (EF008730) | 5 A |
| Voltage type (EF000187) | AC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Rated switch current (EF006706) | 5 A |
| With auto test for earth leakage function (EF008727) | No |
| Rated voltage (EF000228) | 250 V |
| Device fitting (EF007826) | Miniature circuit breaker (MCB) |
| Suitable for max. number of poles main contact unit (total) (EF008729) | 4 |
