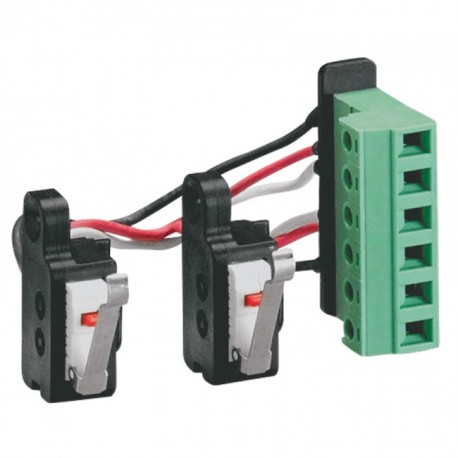

LEGRAND 421010 421010 LEGRAND DPX3 cont. aux. (NA+NC) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

421010 LEGRAND DPX3 cont. aux. (NA+NC)

421010

421010

LEGRAND

1 Pcs.

DPX3 cont. aux. (NA+NC) Auxiliary contact for DPX³ - 1 N/C + 1 N/O for rotary handles Auxiliary contact 1 NC - 1 NA for rotary control DPX³ 160/250

Automation > Auxiliary device for distribution board devices
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 421010 Legrand DPX3 continuous auxiliary contact is a modular switching block designed to report the open or closed status of circuit breakers to external control systems. It provides reliable electrical feedback for system monitoring, status indication panels, and automated safety interlocks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Auxiliary switch
  • Number of fault-signal switches (EF007613): 0
  • Number of contacts as change-over contact (EF008257): 2
  • Suitable for max. current main contact unit (EF008730): 5 A
  • Voltage type (EF000187): AC
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated switch current (EF006706): 5 A
  • With auto test for earth leakage function (EF008727): No
  • Rated voltage (EF000228): 250 V
  • Device fitting (EF007826): Miniature circuit breaker (MCB)

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.127
  • Weight (g)26.00
Product characteristics
Auxiliary contact or fault signal
  • 1 N/C + 1 N/O auxiliary contact for rotary handles
General characteristics
DPX³ 160 and 250 common auxiliaries and accessories
