LEGRAND 420757 420757 LEGRAND DPX3250 mag+d, 3P+N/2 250A 70kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

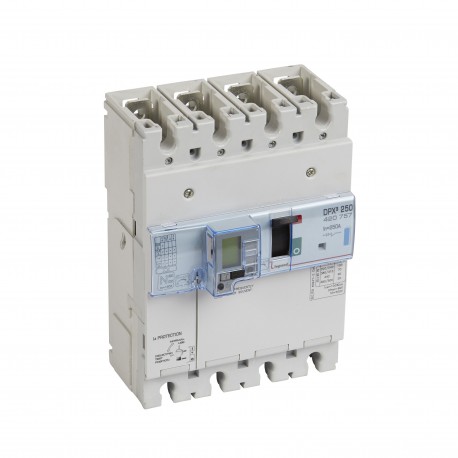

420757 LEGRAND DPX3250 mag+d, 3P+N/2 250A 70kA

420757

420757

LEGRAND

1 Pcs.

DPX3250 mag+d, 3P+N/2 250A 70kA Automatic MCCB DPX3 250 - mag+dif - 3P+N/2 - Icu 70 kA (400 V~) - In 250 To Automatic MCCB DPX³ 250 - differential circuit breaker - 3P+N/2 - 70kA - 250A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Product features

Automatic moulded case circuit breaker differential - fixed version Thermal adjustable from 0,8 to 1 In Magnetic adjustable from 5 to 10 In - Differential built-in with LCD display - adjustable Sensitivity: 0,03 - 0,3 - 1 - 3 A - adjustable Trip: 0 - 0,3 - 1 - 3 s (0 s only with sensitivity 0,03 A) breaking capacity Icu 70 kA (400 V~) - Number of poles: 3P+N/2 - In: 250 To

General characteristics

DPX3 25 automatic power circuit a differential of 100-to-250 To - Are mounted on a profile symmetrical or on mounting plate in boxes and cabinets XL3 - Guarantee to the court, the control, the switching and protection of power lines, low voltage - Includes separation plates, terminals cage connection 120 mm2 maximum flexible cable and up to 150 mm2 with accessories - equipped with the auxiliary Settings - sealable - Meet the standard UNE-en 60947-2

ETIM for 420757 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Degree of protection (IP) (EF005474) IP30
Number of auxiliary contacts as change-over contact (EF003531) 1
Number of auxiliary contacts as normally closed contact (EF001377) 1
Adjustment range undelayed short-circuit release (EF007131) 1250 A
Integrated earth fault protection (EF007296) Yes
With integrated under voltage release (EF001390) Yes
Suitable for DIN rail (top hat rail) mounting (EF007250) Yes
Device construction (EF008240) Built-in device fixed built-in technique
Number of poles (EF001391) 4
Type of electrical connection of main circuit (EF006819) Screw connection
Overload release current setting (EF002336) 200 A
Motor drive integrated (EF006697) No
Adjustment range short-term delayed short-circuit release (EF007129) 1250 A
Type of control element (EF006976) Toggle
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) 70 kA
Rated permanent current Iu (EF001389) 250 A
With switched-off indicator (EF007006) Yes
Motor drive optional (EF007386) Yes
Position of connection for main current circuit (EF006671) Front
Rated voltage (EF003977) 220 V
DIN rail (top hat rail) mounting optional (EF008904) Yes
Complete device with protection unit (EF008906) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
