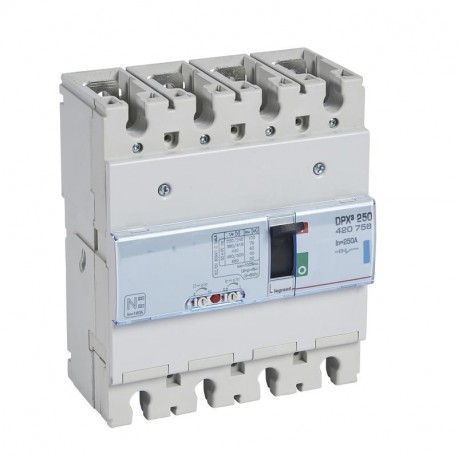

LEGRAND 420756 420756 LEGRAND DPX3250 mag. 3P+N/2 250A 70kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

420756 LEGRAND DPX3250 mag. 3P+N/2 250A 70kA

420756

420756

LEGRAND

1 Pcs.

DPX3250 mag. 3P+N/2 250A 70kA Automatic MCCB DPX3 250 - magnetotérm - 3P+N/2 - Icu 70 kA (400 V~) - In 250 To Automatic MCCB DPX³ 250 - circuit breaker - 3P+N/2 - 70kA - 250A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 420756 LEGRAND DPX3250 mag. 3P+N/2 250A 70kA magnetic circuit breaker is engineered to provide precise short-circuit protection in high-demand electrical installations. Multi-pole breakers are essential components in commercial and industrial distribution boards for safely isolating phases during fault events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 1250 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Overload release current setting (EF002336): 200 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 250 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲

Product features

Automatic moulded case circuit breaker - fixed version Thermal adjustable from 0,8 to 1 In Magnetic adjustable from 5 to 10 In breaking capacity Icu 70 kA (400 V~) - Number of poles: 3P+N/2 - In: 250 To

General characteristics

DPX3 250 automatic power current protection 100-to 250 - Is mounted on a profile symmetrical or on mounting plate in boxes and cabinets XL3 - Guarantee to the court, the control, the switching and protection of power lines, low voltage - Includes separation plates, terminals cage connection 120 mm2 maximum flexible cable and up to 150 mm2 with accessories - equipped with the auxiliary Settings - sealable - Meet the standard UNE-en 60947-2
