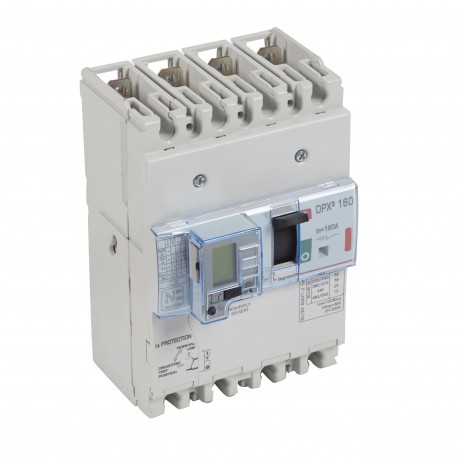

420737 LEGRAND DPX3160 mag+d, 3P+N/2 160A 16kA

420737

420737

LEGRAND

1 Pcs.

DPX3160 mag+d, 3P+N/2 160A 16kA DPX³ 160 3 Pole + N/2 160A Thermal Magnetic MCCB with Earth Leakage Module 16kA Automatic MCCB DPX³ 160 - differential circuit breaker - 3P+N/2 - 16kA - In 160A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Electrical panel builders utilize protective equipment like the 420737 LEGRAND DPX3160 mag+d, 3P+N/2 160A 16kA to secure electrical circuits against faults. Molded case circuit breakers interrupt dangerous fault currents automatically to protect industrial machinery and personnel.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 1600 A
  • Integrated earth fault protection (EF007296): Yes
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Overload release current setting (EF002336): 128 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 160 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲
Rated permanent current Iu160 A
Rated voltage220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz16 kA
Overload release current setting128-160 A
Adjustment range short-term delayed short-circuit release1600-1600 A
Adjustment range undelayed short-circuit release1600-1600 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionYes
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingYes
DIN rail (top hat rail) mounting optionalYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as change-over contact1
With switched-off indicatorYes
With integrated under voltage releaseYes
Number of poles3
Position of connection for main current circuitFront side
Type of control elementWing knob
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30
Contains Batteries and/or AccumulatorYes
IEC code (Pack1)CR1616
Battery ou Accumulator (Pack1)Battery (not rechargeable)
Element Composition (Pack1)Lithium (battery or accumulator)
Number of Pack 12
Number of Single Element (Pack1)1
Single Element weight (Pack1)1.1 g
Pack1 LocationProduct includes a battery
Regulation Type (Pack1)P : Portable (Standard format)
