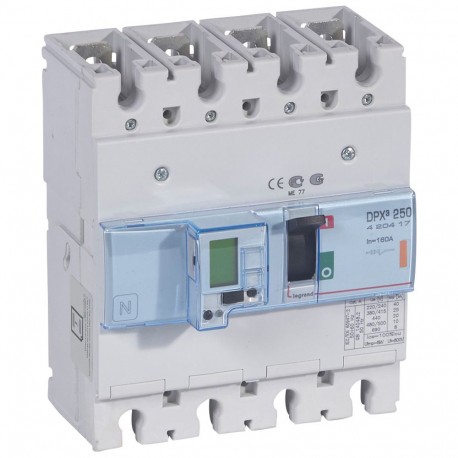

420417 LEGRAND DPX3250 elec+med 4P 160A 25kA
420417
420417
LEGRAND
1 unit
Automation > DPX3 MOLDED BOX
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 420417 is a molded case circuit breaker designed to protect electrical distribution infrastructure from overcurrents and short circuits. Such protective devices are standard in industrial facilities for isolating faults and maintaining safe power delivery to machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP): IP30
- Number of auxiliary contacts as change-over contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Adjustment range undelayed short-circuit release: 96 A
- Integrated earth fault protection: No
- With integrated under voltage release: Yes
- Suitable for DIN rail (top hat rail) mounting: Yes
- Device construction: Built-in device fixed built-in technique
- Number of poles: 4
- Type of electrical connection of main circuit: Screw connection
- Overload release current setting: 64 A
- Motor drive integrated: No
- Adjustment range short-term delayed short-circuit release: 96 A
- Type of control element: Toggle
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz: 25 kA
- Rated permanent current Iu: 160 A
More info
▲| Rated permanent current Iu | 160 A |
|---|---|
| Rated voltage | 220-690 V |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 25 kA |
| Overload release current setting | 64-160 A |
| Adjustment range short-term delayed short-circuit release | 96-1600 A |
| Adjustment range undelayed short-circuit release | 96-1600 A |
| Device construction | Built-in device fixed built-in technique |
| Integrated earth fault protection | No |
| Type of electrical connection of main circuit | Screw connection |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| DIN rail (top hat rail) mounting optional | Yes |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as change-over contact | 1 |
| With switched-off indicator | Yes |
| With integrated under voltage release | Yes |
| Number of poles | 4 |
| Position of connection for main current circuit | Front side |
|---|---|
| Type of control element | Wing knob |
| Complete device with protection unit | Yes |
| Motor drive integrated | No |
| Motor drive optional | Yes |
| Degree of protection (IP) | IP30 |
| Contains Batteries and/or Accumulator | Yes |
| IEC code (Pack1) | CR1616 |
| Battery ou Accumulator (Pack1) | Battery (not rechargeable) |
| Element Composition (Pack1) | Lithium (battery or accumulator) |
| Number of Pack 1 | 2 |
| Number of Single Element (Pack1) | 1 |
| Single Element weight (Pack1) | 1.1 g |
| Pack1 Location | Product includes a battery |
| Regulation Type (Pack1) | P : Portable (Standard format) |
