LEGRAND 420345 420345 LEGRAND DPX3250 elect. 4P 100A 36kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

420345 LEGRAND DPX3250 elect. 4P 100A 36kA

420345

420345

LEGRAND

1 Pcs.

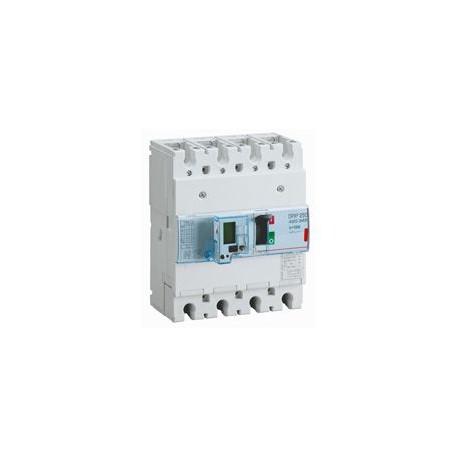

DPX3250 elect. 4P 100A 36kA DPX³ 250 4 Pole 100A S2 Electronic Release MCCB 36kA Automatic MCCB DPX³ 250 - electronic - 4P - 36kA - 100A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 420345 DPX3250 elect. 4P 100A 36kA is an electronic molded case circuit breaker utilized in electrical panels for selective overcurrent protection and network isolation. This component type provides precise tripping characteristics to protect complex installations from electrical faults.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 60 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Overload release current setting (EF002336): 40 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 100 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲
Rated permanent current Iu100 A
Rated voltage220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz36 kA
Overload release current setting40-100 A
Adjustment range short-term delayed short-circuit release60-1000 A
Adjustment range undelayed short-circuit release60-1000 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingYes
DIN rail (top hat rail) mounting optionalYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as change-over contact1
With switched-off indicatorYes
With integrated under voltage releaseYes
Number of poles4
Position of connection for main current circuitFront side
Type of control elementWing knob
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30
Contains Batteries and/or AccumulatorYes
IEC code (Pack1)CR1616
Battery ou Accumulator (Pack1)Battery (not rechargeable)
Element Composition (Pack1)Lithium (battery or accumulator)
Number of Pack 12
Number of Single Element (Pack1)1
Single Element weight (Pack1)1.1 g
Pack1 LocationProduct includes a battery
Regulation Type (Pack1)P : Portable (Standard format)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
