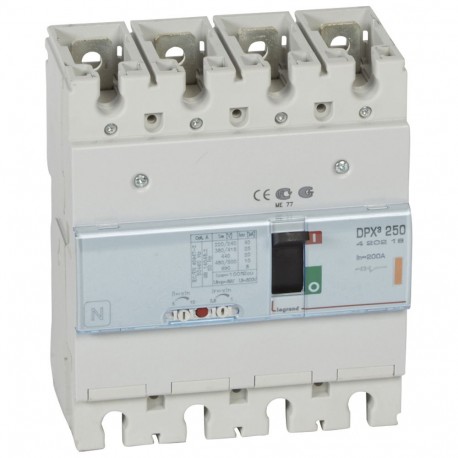

LEGRAND 420218 420218 LEGRAND DPX3250 mag. 4P 200A 25kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

420218 LEGRAND DPX3250 mag. 4P 200A 25kA

420218

420218

LEGRAND

1 Pcs.

DPX3250 mag. 4P 200A 25kA DPX³ 250 4 Pole 200A Thermal Magnetic MCCB 25kA Automatic MCCB DPX³ 250 - circuit breaker - 4P - 25kA - 200A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for electrical panel installations, this circuit-breaker offers dependable overcurrent protection and short-circuit isolation for commercial applications. These protective units help prevent electrical fires and equipment failure by cutting off fault currents instantly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 1000 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Overload release current setting (EF002336): 160 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 200 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲
Rated permanent current Iu200 A
Rated voltage220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz25 kA
Overload release current setting160-200 A
Adjustment range short-term delayed short-circuit release1000-2000 A
Adjustment range undelayed short-circuit release1000-2000 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingYes
DIN rail (top hat rail) mounting optionalYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as change-over contact1
With switched-off indicatorYes
With integrated under voltage releaseYes
Number of poles4
Position of connection for main current circuitFront side
Type of control elementWing knob
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
