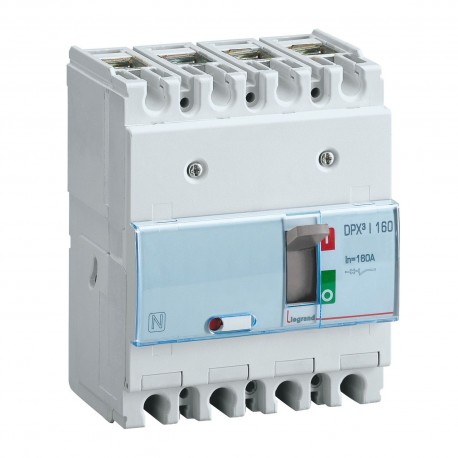

420199 LEGRAND DPX3160 inter. 4P 160A

420199

420199

LEGRAND

1 Pcs.

DPX3160 inter. 4P 160A DPX³-I 160 4 Pole 160A Trip-Free Switch DPX³ -I 160 - 4P - 160A Free Disconnect Switch

Connectors > Switch disconnector
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 420199 DPX3160 inter. 4P 160A functions as a robust circuit breaker or switch-disconnector, protecting distribution lines and load equipment from overcurrent faults. Such modular units safeguard commercial and industrial electrical infrastructures against unexpected surges. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Voltage release optional (EF007491): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): Yes
  • Motor drive integrated (EF006697): No
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Toggle
  • Conditioned rated short-circuit current Iq (EF001444): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 64 kW

More info

▲
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Version as emergency stop installationYes
Version as reversing switchNo
Max. rated operation voltage Ue AC690 V
Rated operating voltage220-690 V
Rated permanent current Iu160 A
Rated permanent current at AC-21, 400 V160 A
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V64 kW
Conditioned rated short-circuit current Iq1.7 kA
Number of poles4
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as change-over contact1
Motor drive optionalYes
Motor drive integratedNo
Voltage release optionalYes
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Colour control elementGrey
Type of control elementWing knob
InterlockableYes
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
