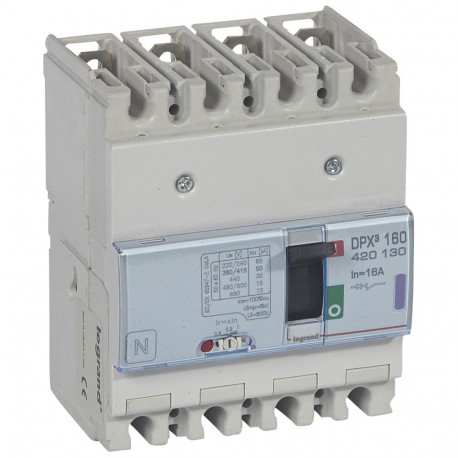

DPX3160 mag. 4P 16A 50kA DPX³ 160 4 Pole 16A Thermal Magnetic MCCB 50kA Automatic MCCB DPX³ 160 - circuit breaker - 4P - 50kA - 16A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A LEGRAND DPX3160 mag. 4P 16A 50kA is a magnetic circuit breaker built to protect electrical distribution networks from high short-circuit currents. Industrial setups rely on these protective devices to isolate faulty lines instantly and prevent equipment damage.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 400 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Overload release current setting (EF002336): 12.8 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 16 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲
Rated permanent current Iu16 A
Rated voltage220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz50 kA
Overload release current setting12.8-16 A
Adjustment range short-term delayed short-circuit release400-400 A
Adjustment range undelayed short-circuit release400-400 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingYes
DIN rail (top hat rail) mounting optionalYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as change-over contact1
With switched-off indicatorYes
With integrated under voltage releaseYes
Number of poles4
Position of connection for main current circuitFront side
Type of control elementWing knob
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
