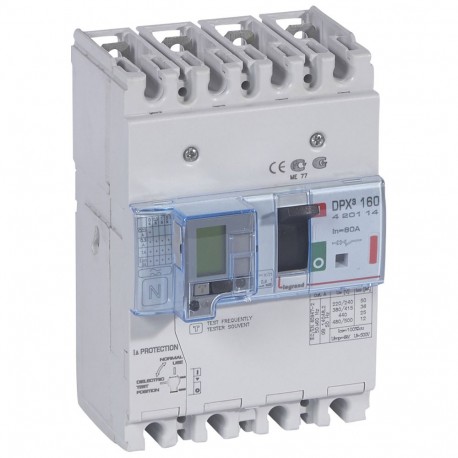

420114 LEGRAND DPX3160 mag+dif 4P 80A 36kA
420114
420114
LEGRAND
1 Pcs.
DPX3160 mag+dif 4P 80A 36kA
DPX³ 160 4 Pole 80A Thermal Magnetic MCCB with Earth Leakage Module 36kA
Automatic MCCB DPX³ 160 - differential circuit breaker - 4P - 36kA - 80A
Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Rated permanent current Iu | 80 A |
|---|---|
| Rated voltage | 220-690 V |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 36 kA |
| Overload release current setting | 64-80 A |
| Adjustment range short-term delayed short-circuit release | 800-800 A |
| Adjustment range undelayed short-circuit release | 800-800 A |
| Device construction | Built-in device fixed built-in technique |
| Integrated earth fault protection | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| DIN rail (top hat rail) mounting optional | Yes |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as change-over contact | 1 |
| With switched-off indicator | Yes |
| With integrated under voltage release | Yes |
| Number of poles | 4 |
| Position of connection for main current circuit | Front side |
|---|---|
| Type of control element | Wing knob |
| Complete device with protection unit | Yes |
| Motor drive integrated | No |
| Motor drive optional | Yes |
| Degree of protection (IP) | IP30 |
| Contains Batteries and/or Accumulator | Yes |
| IEC code (Pack1) | CR1616 |
| Battery ou Accumulator (Pack1) | Battery (not rechargeable) |
| Element Composition (Pack1) | Lithium (battery or accumulator) |
| Number of Pack 1 | 2 |
| Number of Single Element (Pack1) | 1 |
| Single Element weight (Pack1) | 1.1 g |
| Pack1 Location | Product includes a battery |
| Regulation Type (Pack1) | P : Portable (Standard format) |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP30 |
| Number of auxiliary contacts as change-over contact (EF003531) | 1 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Adjustment range undelayed short-circuit release (EF007131) | 800 A |
| Integrated earth fault protection (EF007296) | Yes |
| With integrated under voltage release (EF001390) | Yes |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Overload release current setting (EF002336) | 64 A |
| Motor drive integrated (EF006697) | No |
| Adjustment range short-term delayed short-circuit release (EF007129) | 800 A |
| Type of control element (EF006976) | Toggle |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) | 36 kA |
| Rated permanent current Iu (EF001389) | 80 A |
| With switched-off indicator (EF007006) | Yes |
| Motor drive optional (EF007386) | Yes |
| Position of connection for main current circuit (EF006671) | Front |
| Rated voltage (EF003977) | 220 V |
| DIN rail (top hat rail) mounting optional (EF008904) | Yes |
| Complete device with protection unit (EF008906) | Yes |
