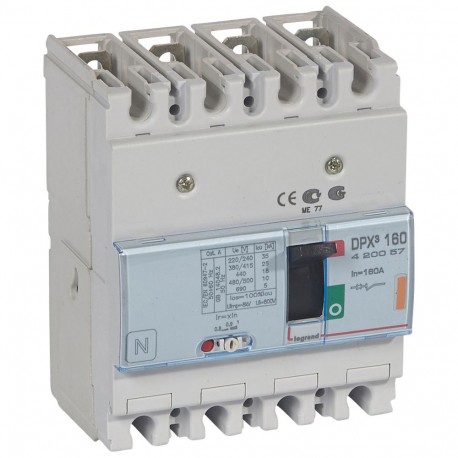

DPX3160 mag. 4P 160A 25kA DPX³ 160 4 Pole 160A Thermal Magnetic MCCB 25kA Automatic MCCB DPX³ 160 - circuit breaker - 4P - 25kA - 160A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Magnetic circuit breaker unit 420057 by Legrand, designed to provide fast magnetic trip response against high short-circuit currents in commercial and industrial distribution boards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP): IP30
  • Number of auxiliary contacts as change-over contact: 1
  • Number of auxiliary contacts as normally closed contact: 1
  • Adjustment range undelayed short-circuit release: 1600 A
  • Integrated earth fault protection: No
  • With integrated under voltage release: Yes
  • Suitable for DIN rail (top hat rail) mounting: Yes
  • Device construction: Built-in device fixed built-in technique
  • Number of poles: 4
  • Type of electrical connection of main circuit: Screw connection
  • Overload release current setting: 128 A
  • Motor drive integrated: No
  • Adjustment range short-term delayed short-circuit release: 1600 A
  • Type of control element: Toggle
  • Rated short-circuit breaking capacity Icu at 400 V, 50 Hz: 25 kA
  • Rated permanent current Iu: 160 A

More info

▲
Rated permanent current Iu160 A
Rated voltage220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz25 kA
Overload release current setting128-160 A
Adjustment range short-term delayed short-circuit release1600-1600 A
Adjustment range undelayed short-circuit release1600-1600 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingYes
DIN rail (top hat rail) mounting optionalYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as change-over contact1
With switched-off indicatorYes
With integrated under voltage releaseYes
Number of poles4
Position of connection for main current circuitFront side
Type of control elementWing knob
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
