LEGRAND 420053 420053 LEGRAND DPX3160 mag. 4P 63A 25kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

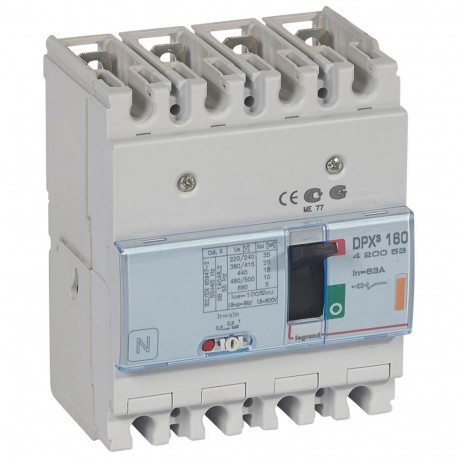

420053 LEGRAND DPX3160 mag. 4P 63A 25kA

420053

420053

LEGRAND

1 unit

DPX3160 mag. 4P 63A 25kA DPX³ 160 4 Pole 63A Thermal Magnetic MCCB 25kA Automatic MCCB DPX³ 160 - circuit breaker - 4P - 25kA - 63A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 420053 magnetic circuit-breaker is designed to protect low-voltage electrical circuits against short circuits and heavy current overloads in commercial installations. Four-pole breakers of this variety ensure complete phase isolation and reliable power interruption in modern distribution panels. Exact pricing, inventory availability, and lead times are confirmed per enquiry through an RFQ.

  • Degree of protection (IP): IP30
  • Number of auxiliary contacts as change-over contact: 1
  • Number of auxiliary contacts as normally closed contact: 1
  • Adjustment range undelayed short-circuit release: 630 A
  • Integrated earth fault protection: No
  • With integrated under voltage release: Yes
  • Suitable for DIN rail (top hat rail) mounting: Yes
  • Device construction: Built-in device fixed built-in technique
  • Number of poles: 4
  • Type of electrical connection of main circuit: Screw connection
  • Overload release current setting: 50.4 A
  • Motor drive integrated: No
  • Adjustment range short-term delayed short-circuit release: 630 A
  • Type of control element: Toggle
  • Rated short-circuit breaking capacity Icu at 400 V, 50 Hz: 25 kA
  • Rated permanent current Iu: 63 A

More info

▲
Rated permanent current Iu63 A
Rated voltage220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz25 kA
Overload release current setting50.4-63 A
Adjustment range short-term delayed short-circuit release630-630 A
Adjustment range undelayed short-circuit release630-630 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingYes
DIN rail (top hat rail) mounting optionalYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as change-over contact1
With switched-off indicatorYes
With integrated under voltage releaseYes
Number of poles4
Position of connection for main current circuitFront side
Type of control elementWing knob
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
