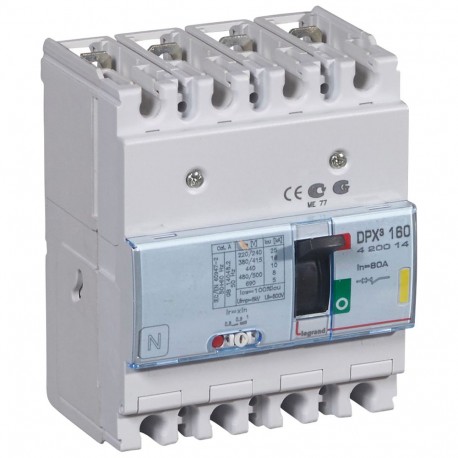

420014 LEGRAND DPX3160 mag. 4P 80A 16kA

420014

420014

LEGRAND

1 Pcs.

DPX3160 mag. 4P 80A 16kA DPX³ 160 4 Pole 80A Thermal Magnetic MCCB 16kA Automatic MCCB DPX³ 160 - circuit breaker - 4P - 16kA - 80A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a dependable safety device, the 420014 LEGRAND DPX3160 mag. 4P 80A 16kA is a thermal-magnetic circuit breaker designed to protect sub-distributions and motor circuits from thermal overloads and instantaneous short circuits. Compact circuit breakers of this classification are standard across manufacturing floors and commercial panels for reliable branch circuit isolation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 800 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Overload release current setting (EF002336): 64 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 80 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲
Rated permanent current Iu80 A
Rated voltage220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz16 kA
Overload release current setting64-80 A
Adjustment range short-term delayed short-circuit release800-800 A
Adjustment range undelayed short-circuit release800-800 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingYes
DIN rail (top hat rail) mounting optionalYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as change-over contact1
With switched-off indicatorYes
With integrated under voltage releaseYes
Number of poles4
Position of connection for main current circuitFront side
Type of control elementWing knob
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30
