View larger
Images are for illustrative purposes only. Please refer to data sheet for details

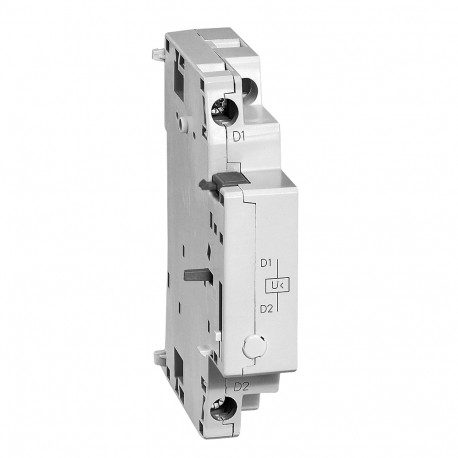

417422 LEGRAND MPX BOB DESC MT 230V AC
417422
417422
LEGRAND
1 Pcs.
MPX BOB DESC MT 230V AC
Undervoltage without auxiliary contact - 220-230 V - 50 Hz / 240-260 V - 60 Hz
Minimum voltage coil for MPX³ - 220 - 230V - 50Hz
Automation > Under voltage coil
MOTOR CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.203
- Weight (g)118.00
Product characteristics
Undervoltage release- Mounting on the right side of MPCBs
- One release per MPCB
- 220-230 V - 50 Hz / 240-260 V - 60 Hz
General characteristics
MPCBs MPX³ - accessories| Feature Name | Feature Value |
|---|---|
| Delayed (EF001541) | No |
| Suitable for off-load switch (EF001543) | No |
| Suitable for power circuit breaker (EF005863) | No |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type for actuating (EF008242) | AC |
| Suitable for motor safety switch (EF005826) | Yes |
| Suitable for overload relay (EF001545) | No |
| Rated control supply voltage AC 50 Hz (EF003978) | 195.5 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 195.5 V |
