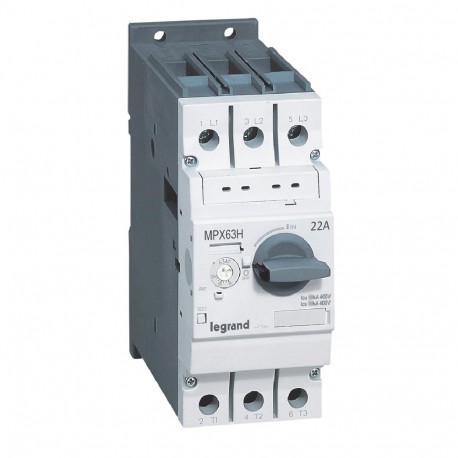

417363 LEGRAND MPX 63H GUARDAMT 14-22A
417363
417363
LEGRAND
1 Pcs.
Automation > Motor protection circuit-breaker
MOTOR CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Mpx 63h guardamt 14-22a devices are specialized motor protection circuit breakers engineered to safeguard medium-duty industrial electric motors from thermal overloads and short circuits. They isolate electrical faults swiftly to protect automated machinery and prevent costly operational interruptions. The Legrand 417363 model provides robust control and protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Switch off technique (EF007007): Thermomagnetic
- Height (EF000040): 140 mm
- Type of control element (EF006976): Rotating button
- With thermal overload protection (EF006233): Yes
- Degree of protection (IP) (EF005474): IP20
- Rated operation power at AC-3, 230 V (EF007025): 4 kW
- With integrated auxiliary switch (EF001387): Yes
- Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
- Phase failure sensitive (EF007400): No
- Rated permanent current Iu (EF001389): 22 A
- Adjustment range undelayed short-circuit release (EF007131): 286 A
- With integrated under voltage release (EF001390): Yes
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Rated operating voltage (EF001435): 220 V
- Depth (EF000049): 144.6 mm
More info
▲- Pack (number of units)1
- Volume (dm3)1.435
- Weight (g)1 016.00
- Adjustable thermal release
- Magnetic release 13 Ie max.
- High breaking capacity
- With rotary handle
- Fixing on rail or by screw
- 3-phase motor 400/415 V : 7.5 kW
- Thermal release adjustment range : 14 to 22 A
- Magnetic release operating current : 286 A
- 415 V breaking capacity Icu : 50 kA
- Conform to IEC 60947-1, IEC 60947-2, IEC 60947-4 ; class 10
