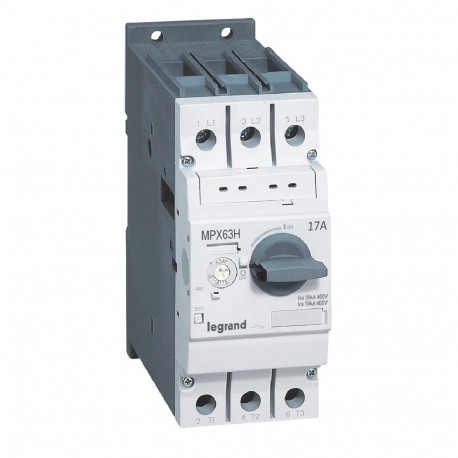

LEGRAND 417362 417362 LEGRAND MPX 63H GUARDAMT 11-17A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417362 LEGRAND MPX 63H GUARDAMT 11-17A

417362

417362

LEGRAND

1 Pcs.

MPX 63H GUARDAMT 11-17A MPCB MPX³ 63H - thermal magnetic - motor protection - 3P - 17 A - 50 kA MPX³ 63H Circuit Breaker - 17A - 50kA

Automation > Motor protection circuit-breaker
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 417362 MPX 63H GUARDAMT 11-17A protects industrial motors from electrical anomalies by combining thermal overload and magnetic short-circuit trip mechanisms. It ensures reliable switching and equipment defense in heavy-duty machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Switch off technique (EF007007): Thermomagnetic
  • Height (EF000040): 140 mm
  • Type of control element (EF006976): Rotating button
  • With thermal overload protection (EF006233): Yes
  • Degree of protection (IP) (EF005474): IP20
  • Rated operation power at AC-3, 230 V (EF007025): 3.7 kW
  • With integrated auxiliary switch (EF001387): Yes
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Phase failure sensitive (EF007400): No
  • Rated permanent current Iu (EF001389): 17 A
  • Adjustment range undelayed short-circuit release (EF007131): 221 A
  • With integrated under voltage release (EF001390): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Rated operating voltage (EF001435): 220 V
  • Depth (EF000049): 144.6 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.438
  • Weight (g)1 031.00
Product characteristics
Thermal magnetic MPCBs
  • Adjustable thermal release
  • Magnetic release 13 Ie max.
MPX³ 63H
  • High breaking capacity
  • With rotary handle
  • Fixing on rail or by screw
  • 3-phase motor 400/415 V : 7.5 kW
  • Thermal release adjustment range : 11 to 17 A
  • Magnetic release operating current : 221 A
  • 415 V breaking capacity Icu : 50 kA
General characteristics
MPCBs MPX³ - motor protection circuit breakers from 0.16 A to 100 A
  • Conform to IEC 60947-1, IEC 60947-2, IEC 60947-4 ; class 10
