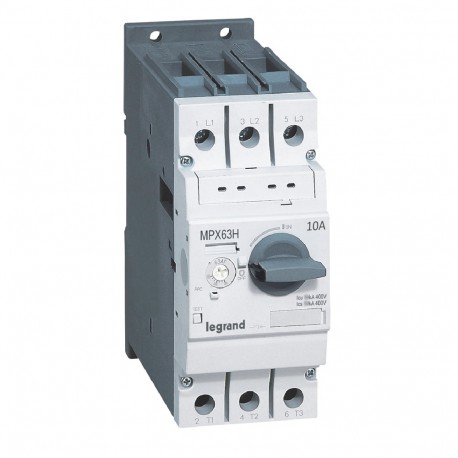

LEGRAND 417360 417360 LEGRAND MPX 63H GUARDAMT 6-10A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417360 LEGRAND MPX 63H GUARDAMT 6-10A

417360

417360

LEGRAND

1 Pcs.

MPX 63H GUARDAMT 6-10A MPCB MPX³ 63H - thermal magnetic - motor protection - 3P - 10 A - 100 kA MPX³ 63H Circuit Breaker - 10A - 100kA

Automation > Motor protection circuit-breaker
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 417360 MPX 63H guard unit functions as a specialized motor protection circuit-breaker designed to monitor current thresholds and protect machinery from thermal and magnetic faults. These devices are commonly incorporated into industrial control gear to ensure operational safety and prevent equipment downtime. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Switch off technique (EF007007): Thermomagnetic
  • Height (EF000040): 140 mm
  • Type of control element (EF006976): Rotating button
  • With thermal overload protection (EF006233): Yes
  • Degree of protection (IP) (EF005474): IP20
  • Rated operation power at AC-3, 230 V (EF007025): 2.2 kW
  • With integrated auxiliary switch (EF001387): Yes
  • Rated operation power at AC-3, 400 V (EF001364): 3.7 kW
  • Phase failure sensitive (EF007400): No
  • Rated permanent current Iu (EF001389): 10 A
  • Adjustment range undelayed short-circuit release (EF007131): 130 A
  • With integrated under voltage release (EF001390): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Rated operating voltage (EF001435): 220 V
  • Depth (EF000049): 144.6 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.408
  • Weight (g)1 002.00
Product characteristics
Thermal magnetic MPCBs
  • Adjustable thermal release
  • Magnetic release 13 Ie max.
MPX³ 63H
  • High breaking capacity
  • With rotary handle
  • Fixing on rail or by screw
  • 3-phase motor 400/415 V : 4 kW
  • Thermal release adjustment range : 6 to 10 A
  • Magnetic release operating current : 130 A
  • 415 V breaking capacity Icu : 100 kA
General characteristics
MPCBs MPX³ - motor protection circuit breakers from 0.16 A to 100 A
  • Conform to IEC 60947-1, IEC 60947-2, IEC 60947-4 ; class 10
