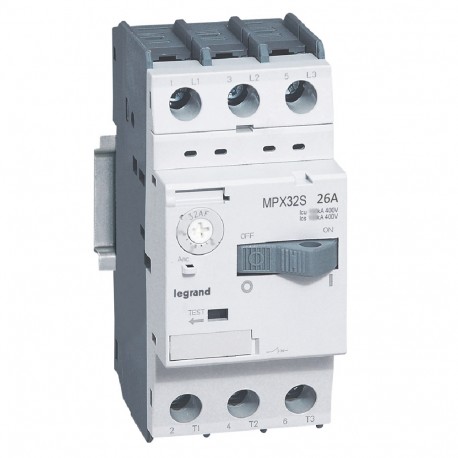

LEGRAND 417314 417314 LEGRAND MPX 32S GUARDAMT 18-26A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417314 LEGRAND MPX 32S GUARDAMT 18-26A

417314

417314

LEGRAND

1 Pcs.

MPX 32S GUARDAMT 18-26A MPCB MPX³ 32S - thermal magnetic - motor protection - 3P - 26 A - 15 kA MPX³ 32S Circuit Breaker - 26A - 15kA

Automation > Motor protection circuit-breaker
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

MPX 32S GUARDAMT 18-26A components like the Legrand 417314 provide dedicated motor protection by safely interrupting power during an overload or short-circuit event. These units are deployed in industrial automation setups to secure machine longevity.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Switch off technique (EF007007): Thermomagnetic
  • Height (EF000040): 94 mm
  • Type of control element (EF006976): Rocker lever
  • With thermal overload protection (EF006233): Yes
  • Degree of protection (IP) (EF005474): IP20
  • Rated operation power at AC-3, 230 V (EF007025): 5.5 kW
  • With integrated auxiliary switch (EF001387): Yes
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Phase failure sensitive (EF007400): No
  • Rated permanent current Iu (EF001389): 26 A
  • Adjustment range undelayed short-circuit release (EF007131): 338 A
  • With integrated under voltage release (EF001390): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Rated operating voltage (EF001435): 220 V
  • Depth (EF000049): 75 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.499
  • Weight (g)325.00
Product characteristics
Thermal magnetic MPCBs
  • Adjustable thermal release
  • Magnetic release 13 Ie max.
MPX³ 32S
  • Standard breaking capacity
  • With toggle handle
  • Fixing on rail
  • 3-phase motor 400/415 V : 11 kW
  • Thermal release adjustment range : 18 to 26 A
  • Magnetic release operating current : 338 A
  • 415 V breaking capacity Icu : 15 kA
General characteristics
MPCBs MPX³ - motor protection circuit breakers from 0.16 A to 100 A
  • Conform to IEC 60947-1, IEC 60947-2, IEC 60947-4 ; class 10
