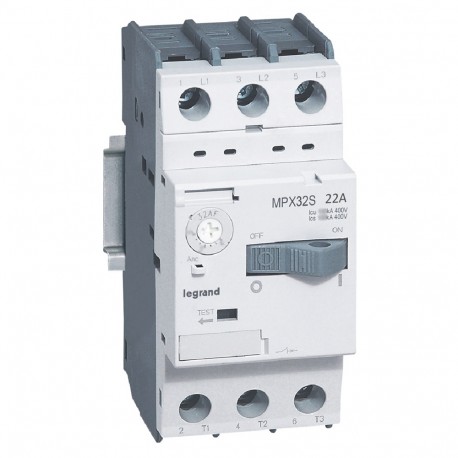

417313 LEGRAND MPX 32S GUARDAMT 14-22A
417313
417313
LEGRAND
1 Pcs.
MPX 32S GUARDAMT 14-22A
MPCB MPX³ 32S - thermal magnetic - motor protection - 3P - 22 A - 15 kA
MPX³ 32S - 22A - 15kA Circuit Breaker
Automation > Motor protection circuit-breaker
MOTOR CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.499
- Weight (g)329.00
Product characteristics
Thermal magnetic MPCBs- Adjustable thermal release
- Magnetic release 13 Ie max.
- Standard breaking capacity
- With toggle handle
- Fixing on rail
- 3-phase motor 400/415 V : 7.5 kW
- Thermal release adjustment range : 14 to 22 A
- Magnetic release operating current : 286 A
- 415 V breaking capacity Icu : 15 kA
General characteristics
MPCBs MPX³ - motor protection circuit breakers from 0.16 A to 100 A- Conform to IEC 60947-1, IEC 60947-2, IEC 60947-4 ; class 10
| Feature Name | Feature Value |
|---|---|
| Switch off technique (EF007007) | Thermomagnetic |
| Height (EF000040) | 94 mm |
| Type of control element (EF006976) | Rocker lever |
| With thermal overload protection (EF006233) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated operation power at AC-3, 230 V (EF007025) | 4 kW |
| With integrated auxiliary switch (EF001387) | Yes |
| Rated operation power at AC-3, 400 V (EF001364) | 7.5 kW |
| Phase failure sensitive (EF007400) | No |
| Rated permanent current Iu (EF001389) | 22 A |
| Rated short-circuit breaking capacity Icu at 400 V, AC (EF007049) | 15 kA |
| Adjustment range undelayed short-circuit release (EF007131) | 286 A |
| With integrated under voltage release (EF001390) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 3 |
| Rated operating voltage (EF001435) | 220 V |
| Depth (EF000049) | 75 mm |
| Overload release current setting (EF002336) | 14 A |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| Width (EF000008) | 45 mm |
