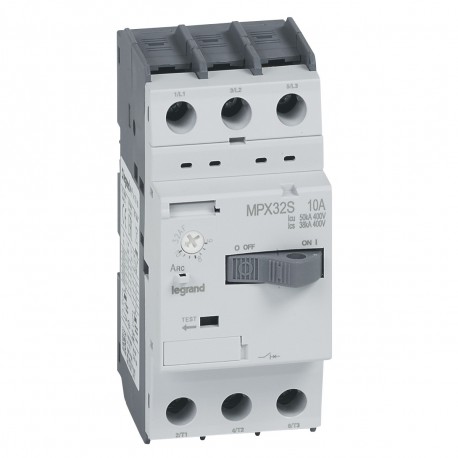

LEGRAND 417310 417310 LEGRAND MPX 32S GUARDAMT 6-10A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417310 LEGRAND MPX 32S GUARDAMT 6-10A

417310

417310

LEGRAND

1 Pcs.

MPX 32S GUARDAMT 6-10A MPCB MPX³ 32S - thermal magnetic - motor protection - 3P - 10 A - 50 kA MPX³ 32S Circuit Breaker - 10A - 50kA

Automation > Motor protection circuit-breaker
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand MPX 32S motor protection circuit breaker offers dependable thermomagnetic tripping capabilities for managing standard industrial motor feeds. These protective switches are commonly installed in machine control panels to prevent motor burnout and electrical faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Switch off technique (EF007007): Thermomagnetic
  • Height (EF000040): 94 mm
  • Type of control element (EF006976): Rocker lever
  • With thermal overload protection (EF006233): Yes
  • Degree of protection (IP) (EF005474): IP20
  • Rated operation power at AC-3, 230 V (EF007025): 2.2 kW
  • With integrated auxiliary switch (EF001387): Yes
  • Rated operation power at AC-3, 400 V (EF001364): 3.7 kW
  • Phase failure sensitive (EF007400): No
  • Rated permanent current Iu (EF001389): 10 A
  • Adjustment range undelayed short-circuit release (EF007131): 130 A
  • With integrated under voltage release (EF001390): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Rated operating voltage (EF001435): 220 V
  • Depth (EF000049): 75 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.499
  • Weight (g)321.00
Product characteristics
Thermal magnetic MPCBs
  • Adjustable thermal release
  • Magnetic release 13 Ie max.
MPX³ 32S
  • Standard breaking capacity
  • With toggle handle
  • Fixing on rail
  • 3-phase motor 400/415 V : 4 kW
  • Thermal release adjustment range : 6 to 10 A
  • Magnetic release operating current : 130 A
  • 415 V breaking capacity Icu : 50 kA
General characteristics
MPCBs MPX³ - motor protection circuit breakers from 0.16 A to 100 A
  • Conform to IEC 60947-1, IEC 60947-2, IEC 60947-4 ; class 10
