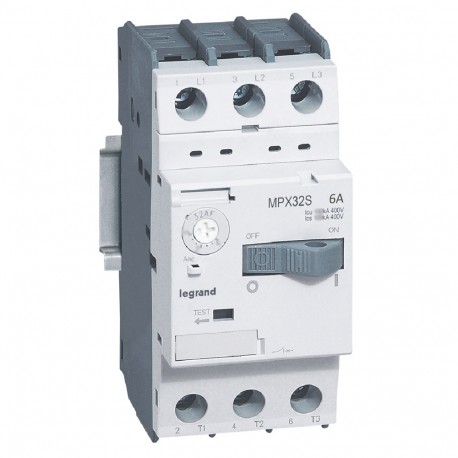

417308 LEGRAND MPX 32S GUARDAMT 4-6A
417308
417308
LEGRAND
1 Pcs.
Automation > Motor protection circuit-breaker
MOTOR CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing reliable thermomagnetic protection, the Legrand 417308 circuit breaker safeguards electrical motors from operational overloads and short circuits. Such devices are widely deployed within automation enclosures to maintain safe power distribution. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Switch off technique (EF007007): Thermomagnetic
- Height (EF000040): 94 mm
- Type of control element (EF006976): Rocker lever
- With thermal overload protection (EF006233): Yes
- Degree of protection (IP) (EF005474): IP20
- Rated operation power at AC-3, 230 V (EF007025): 1.1 kW
- With integrated auxiliary switch (EF001387): Yes
- Rated operation power at AC-3, 400 V (EF001364): 2.2 kW
- Phase failure sensitive (EF007400): No
- Rated permanent current Iu (EF001389): 6 A
- Adjustment range undelayed short-circuit release (EF007131): 78 A
- With integrated under voltage release (EF001390): Yes
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Rated operating voltage (EF001435): 220 V
- Depth (EF000049): 75 mm
More info
▲- Pack (number of units)1
- Volume (dm3)0.499
- Weight (g)317.00
- Adjustable thermal release
- Magnetic release 13 Ie max.
- Standard breaking capacity
- With toggle handle
- Fixing on rail
- 3-phase motor 400/415 V : 2.2 kW
- Thermal release adjustment range : 4 to 6 A
- Magnetic release operating current : 78 A
- 415 V breaking capacity Icu : 100 kA
- Conform to IEC 60947-1, IEC 60947-2, IEC 60947-4 ; class 10
