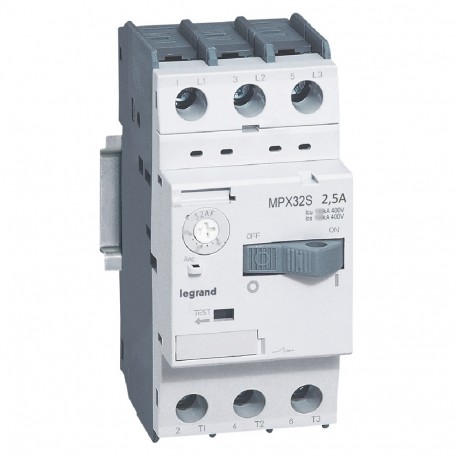

417306 LEGRAND MPX 32S GUARDAMT 1.6-2.5 A
417306
417306
LEGRAND
1 Pcs.
Automation > Motor protection circuit-breaker
MOTOR CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 417306 MPX 32S GUARDAMT 1.6-2.5 A operates as a protective circuit breaker intended for safeguarding small industrial electric motors. It integrates thermomagnetic release mechanisms to disconnect power during overcurrent events or short-circuit conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Switch off technique (EF007007): Thermomagnetic
- Height (EF000040): 94 mm
- Type of control element (EF006976): Rocker lever
- With thermal overload protection (EF006233): Yes
- Degree of protection (IP) (EF005474): IP20
- Rated operation power at AC-3, 230 V (EF007025): 0.37 kW
- With integrated auxiliary switch (EF001387): Yes
- Rated operation power at AC-3, 400 V (EF001364): 0.75 kW
- Phase failure sensitive (EF007400): No
- Rated permanent current Iu (EF001389): 2.5 A
- Adjustment range undelayed short-circuit release (EF007131): 32.5 A
- With integrated under voltage release (EF001390): Yes
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Rated operating voltage (EF001435): 220 V
- Depth (EF000049): 75 mm
More info
▲- Pack (number of units)1
- Volume (dm3)0.499
- Weight (g)329.00
- Adjustable thermal release
- Magnetic release 13 Ie max.
- Standard breaking capacity
- With toggle handle
- Fixing on rail
- 3-phase motor 400/415 V : 0.75 kW
- Thermal release adjustment range : 1.6 to 2.5 A
- Magnetic release operating current : 32.5 A
- 415 V breaking capacity Icu : 100 kA
- Conform to IEC 60947-1, IEC 60947-2, IEC 60947-4 ; class 10
