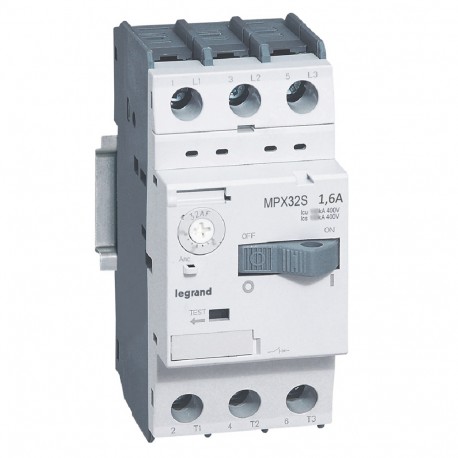

417305 LEGRAND MPX 32S GUARDAMT 1.0-1.6 A
417305
417305
LEGRAND
1 Pcs.
MPX 32S GUARDAMT 1.0-1.6 A
MPCB MPX³ 32S - thermal magnetic - motor protection - 3P - 1.6 A - 100 kA
MPX³ 32S Circuit Breaker - 1.6A - 100kA
Automation > Motor protection circuit-breaker
MOTOR CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand 417305 MPX 32S motor protection circuit breaker safeguards electric drives against overloads and short circuits in industrial control enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Switch off technique (EF007007): Thermomagnetic
- Height (EF000040): 94 mm
- Type of control element (EF006976): Rocker lever
- With thermal overload protection (EF006233): Yes
- Degree of protection (IP) (EF005474): IP20
- Rated operation power at AC-3, 230 V (EF007025): 0.18 kW
- With integrated auxiliary switch (EF001387): Yes
- Rated operation power at AC-3, 400 V (EF001364): 0.37 kW
- Phase failure sensitive (EF007400): No
- Rated permanent current Iu (EF001389): 1.6 A
- Adjustment range undelayed short-circuit release (EF007131): 20.8 A
- With integrated under voltage release (EF001390): Yes
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Rated operating voltage (EF001435): 220 V
- Depth (EF000049): 75 mm
More info
▲- Pack (number of units)1
- Volume (dm3)0.499
- Weight (g)325.00
Product characteristics
Thermal magnetic MPCBs- Adjustable thermal release
- Magnetic release 13 Ie max.
- Standard breaking capacity
- With toggle handle
- Fixing on rail
- 3-phase motor 400/415 V : 0.37/0.55 kW
- Thermal release adjustment range : 1 to 1.6 A
- Magnetic release operating current : 20.8 A
- 415 V breaking capacity Icu : 100 kA
General characteristics
MPCBs MPX³ - motor protection circuit breakers from 0.16 A to 100 A- Conform to IEC 60947-1, IEC 60947-2, IEC 60947-4 ; class 10
