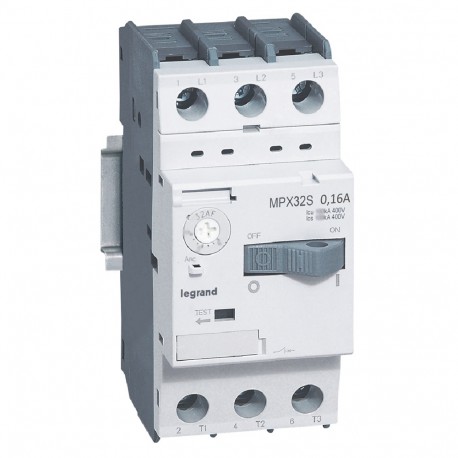

LEGRAND 417300 417300 LEGRAND MPX 32S GUARDAMT 0.1-0.16 A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417300 LEGRAND MPX 32S GUARDAMT 0.1-0.16 A

417300

417300

LEGRAND

1 Pcs.

MPX 32S GUARDAMT 0.1-0.16 A MPCB MPX³ 32S - thermal magnetic - motor protection - 3P - 0.16 A - 100 kA MPX³ 32S Circuit Breaker - 0.16A - 100kA

Automation > Motor protection circuit-breaker
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 417300 MPX 32S GUARDAMT 0.1-0.16 A is a specialized motor protection circuit breaker designed to safeguard low-voltage electric motors against overloads, phase imbalances, and short circuits in industrial control systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Switch off technique (EF007007): Thermomagnetic
  • Height (EF000040): 94 mm
  • Type of control element (EF006976): Rocker lever
  • With thermal overload protection (EF006233): Yes
  • Degree of protection (IP) (EF005474): IP20
  • With integrated auxiliary switch (EF001387): Yes
  • Rated operation power at AC-3, 400 V (EF001364): 0.02 kW
  • Phase failure sensitive (EF007400): No
  • Rated permanent current Iu (EF001389): 0.16 A
  • Adjustment range undelayed short-circuit release (EF007131): 2.1 A
  • With integrated under voltage release (EF001390): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Rated operating voltage (EF001435): 220 V
  • Depth (EF000049): 75 mm
  • Overload release current setting (EF002336): 0.1 A

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.425
  • Weight (g)320.00
Product characteristics
Thermal magnetic MPCBs
  • Adjustable thermal release
  • Magnetic release 13 Ie max.
MPX³ 32S
  • Standard breaking capacity
  • With toggle handle
  • Fixing on rail
  • 3-phase motor 400/415 V : 0.02 kW
  • Thermal release adjustment range : 0.1 to 0.16 A
  • Magnetic release operating current : 2.1 A
  • 415 V breaking capacity Icu : 100 kA
General characteristics
MPCBs MPX³ - motor protection circuit breakers from 0.16 A to 100 A
  • Conform to IEC 60947-1, IEC 60947-2, IEC 60947-4 ; class 10
