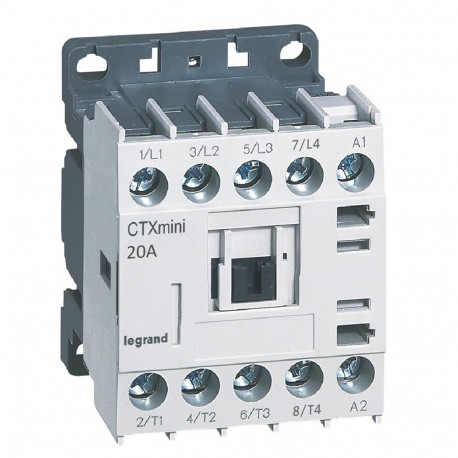

LEGRAND 417146 417146 LEGRAND CTX MINI 4P 20A 230VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417146 LEGRAND CTX MINI 4P 20A 230VAC

417146

417146

LEGRAND

1 Pcs.

CTX MINI 4P 20A - 230VAC 4-pole mini contactors CTX³ - 20 A 230 V~ - screw terminals CTX³ Mini Contactor 4P 20A - 230V~

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 417146 is a miniature contactor utilized in electrical control panels for remote switching of lighting, heating, and small motor loads. Such devices enable efficient electrical circuit management within commercial and industrial automation setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 20 A
  • Number of normally open contacts as main contact (EF001374): 4
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Voltage type for actuating (EF008242): AC
  • Rated operation current Ie at AC-3, 400 V (EF001392): 16 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
  • Type of electrical connection of main circuit (EF006819): Cable clamp
  • Rated control supply voltage AC 60 Hz (EF003979): 195.5 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.20
  • Weight (g)200.00
Product characteristics
4-pole mini contactors
  • With integrated auxiliary contact
  • Power terminals: screw terminals
20 A
  • Max. operating current AC 1 : 20 A
  • Max. operating current AC 3 : 16 A
  • Control Voltage : 230 V~
General characteristics
Mini contactors CTX³ - 6 to 16 A industrial contactors
